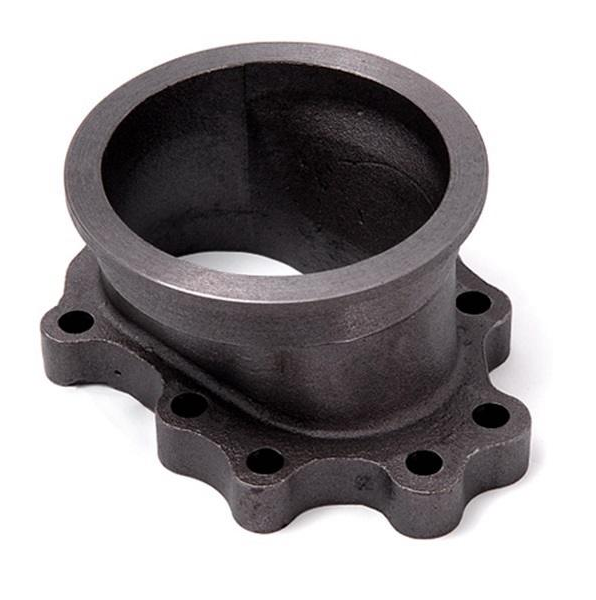

5 bolted flange for GT2860 and GT2871 turbo - V-band - 3"/76mm.

Exhaust flange for GT2860 turbo. V-band flange.
Availability: 57 in stock
SKU: 1.00134.04031
€33.61
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Flange for GT2860 and GT2871 turbo

This flange is mounted on the outlet side of the GT2860 and GT2871 turbo. Then specially made exhaust can be fitted.

V-band outputs / connection is 3 "Gasket for flange is purchased, see bottom of page.
Gasket for this flange is not included, this can be purchased. Look further down the page.

Note that there is not much room for the bolts on this flange. Here, if possible. grind a bit to make room.

For this flange, use these M8 umbraco bolts (length 25mm.)

Depth of flange: 58mm. You can see the dimensions of bolt holes in picture # 2.

Products specifications
Attribute nameAttribute value
Flange type5-bolt
Flange typeV-Band
Inlet / OutletOutlet
