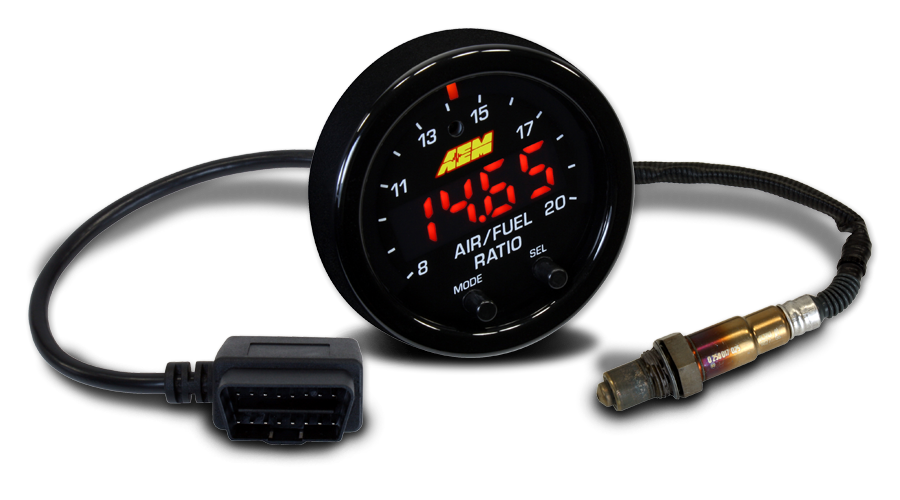

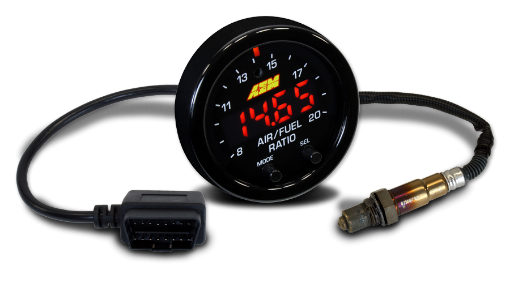

    AEM X-Series OBDII wideband UEGO AFR GAUGE

    Manufacturers: AEM products , All IN Performance
    Quality AFR GAUGE from AEM
    SKU: 1.00129.05-30-0334

    Availability 2 in stock

    €318,44 incl tax
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    AEM X-SERIES OBDII GAUGE - 30-0334

    For fast response times, AEM X-Series wideband UEGO air/fuel sensor controller gauges are the way to go! Built on the unique, patent-pending X-Digital technology, they report accurate information quickly— enabling you to tune your engine more efficiently. These gauges have modern, visually striking faceplates with 7-segment center displays that are 87 percent larger. They're ultra-slim and come with black bezels and black dual-faced faceplates for air/fuel and Lambda. The displays are user-configurable and feature auto dimming

    Additional Information:


    * Bosch 4.9LSU wideband UEGO sensor
    * Factory-calibrated resistor does not require free-air calibration—but technology allows for free-air calibration as sensor ages, if user desires
    * Compatible with vehicle/system voltages up to 16 V
    * 0-5 V and RS232 output for data-logging and feedback control
    * AEMnet (CANbus) for data-logging and daisy-chaining multiple controllers up to 16 cylinders
    * Can display AFR values in hundredths of a percent
    * 52mm gauge diameter and slim 0.825 in. gauge depth
    * Gauge cup depth only .200 in. deep
    * Locking connectors

    *
    *
    *
