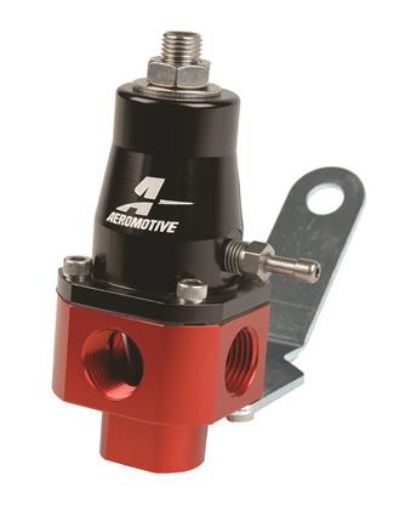

Aeromotive Universal Bypass Regulator
This is a universal bypass controller from aeromotive
| Pressure range: | 3-65 PSi |
| Regulator style: | Return |
| Regulator location: | inline |
| Boost / vacuum reference port: | Yes |
| Boost / Vacuum rise ratio: | 1: 1 |
| Gauge port: | no |
| Inlet quantity: | One |
| Inlet size + threads: | 3/8 ”NPT female threads |
| Outlet quantity: | Three |
| Outlet size + threads: | 3/8 ”NPT female threads
|
| Return fitting size + threads: | 3/8 ”NPT female threads |
| Fittings included: | no |
| Regulator material: | Aluminum |
| Regulator finished: | Red anodized |
| Rebuildable: | Yes |
| Mounting Bracket included: | Yes
|
