Oil return pump for turbo / Gear oil pump 12v

Oil return pump. Used when turbo sits lower than oil height in bottom vessel.
Manufacturer: Marco Pumps

Oil return pump for turbo / Gear oil pump 12v

Original Marco pump. Return pump oil pump. Used when turbo sits lower than oil height in bottom vessel. Also used in boat or other connection.

Used for example in BMW E36 or for mounting turbo on motorcycle. The pump is really powerful, it is with bronze gear and can withstand high tempature so it can be placed just after eg turbo, without having to install cooler or similar.

Oil cooling pump

I personally use an oil pump for my oil cooler system on my BMW E46 which I use to run. The engine control is fitted with an oil temperature sensor which activates the oil pump and a fan mounted on the oil cooler at a temperature of 70 degrees, here I have the opportunity to cool the engine oil even if the car holds in the pit.

Includes hose fittings that fit 13mm. snake. Armored hose must be used as it will otherwise suck the hose flat.

Thread in pumps

UP2 / 3/6 / OIL 3/8 ”BSP

UP12 / OIL is with 1/2 ”BSP

UP14 / OIL is with 3/4 ”BSP

Below the big picture you can see the dimension of all the oil pumps. (Click on the small pictures)

Marco Oil Gear Pump UP2 / OIL - 3.3 liters per minute. - 12 volts
Can suck up to 1 meter under pump - Pressure up to 1.5 bar. H: 126 x L: 112 x W: 76
Availability: 7 in stock
SKU: 1.00109.01011
Old price: €184.83
€151.22
Picture of Marco Oil Gear Pump UP2 / OIL - 3.3 liters per minute. - 12 volts

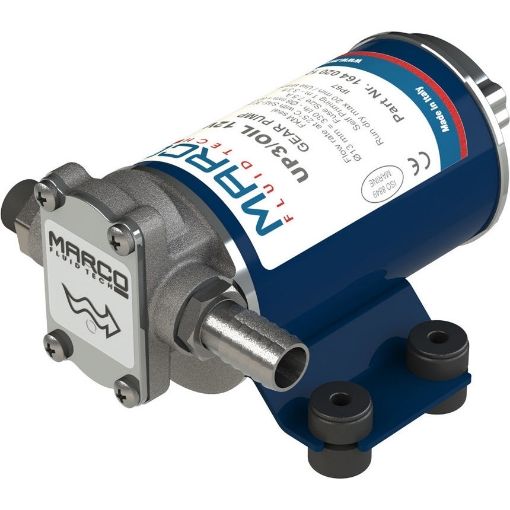

Marco Oil Gear Pump UP3 / OIL - 5.5 liters per minute. - 12 volts
Can suck up to 1 meter under pump - Pressure up to 2 bar.
Availability: 6 in stock
SKU: 1.00109.01021
Old price: €211.71
€171.39
Picture of Marco Oil Gear Pump UP3 / OIL - 5.5 liters per minute. - 12 volts
Marco oil Gear pump UP6 / OIL - 8 liters per minute. - 12 volts
Can suck up to 1.5 meters under pump - Pressure up to 5 bar.
Availability: 2 in stock
SKU: 1.00109.01031
€211.71
Picture of Marco oil Gear pump UP6 / OIL - 8 liters per minute. - 12 volts
Marco Oil Gear Pump UP12 / OIL - 15 liters per minute. - 12 volts
Can suck up to 2 meters under pump - Pressure up to 3 bar.
Availability: 2 in stock
SKU: 1.00109.01041
€302.45
Picture of Marco Oil Gear Pump UP12 / OIL - 15 liters per minute. - 12 volts
Marco Oil Gear Pump UP14 / OIL - 18.3 liters per minute. - 12 volts
Can suck up to 2 meters under pump - Pressure up to 2 bar.
Availability: 2 in stock
SKU: 1.00109.01051
€336.05
Picture of Marco Oil Gear Pump UP14 / OIL - 18.3 liters per minute. - 12 volts
Products specifications
Attribute nameAttribute value
Oil cooling - SortingOliepumpe
