24V VA01-BP70/LL-36A (305 MM)

24 V SPAL VA01-BP70/LL-36A (305 mm) – Pulling Suction Fan

This 24 V SPAL fan (model VA01-BP70/LL-36A) is a powerful and reliable puller (suction) fan, designed for efficient airflow and maximum cooling performance in heavy vehicles, machinery, and industrial applications. Built on proven SPAL quality with a robust construction and long service life.

The fan is ideal as a replacement or upgrade for older/discontinued SPAL alternatives such as VA01-BP1-36A and other similar 305 mm pulling fans, making it a universal spare part for many common 24 V cooling and ventilation tasks.

It features 305 mm paddle blades that optimise airflow and ensure high air volume with low resistance, effectively pulling air through heat exchangers, coolers, and radiators. A durable long-life motor is fitted for additional reliability in demanding environments.

Specifications
SPAL type: VA01-BP70/LL-36A
Power supply: 24 V DC
Function: Pulling (suction)
Fan diameter: 305 mm
Depth: 96 mm

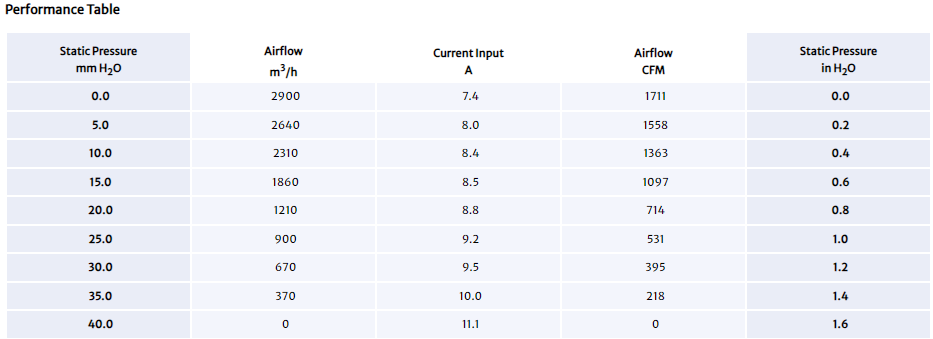

Airflow: 1711 CFM (approx. 2900 m³/h)
Current draw: 11.1 A
Blade type: Paddle blade design for maximum airflow
Motor: Long life, heavy-duty construction
Connection: Standard connector with wiring harness included

OEM and spare part references

This fan is registered under a wide range of OEM, manufacturer, and cross references. This makes it easy to identify as the correct spare part – even when only an older, manufacturer-specific, or alternative part number is available.

SPAL codes
VA01BP70/LL36A, VA01BP70/LL-36A, AC-3010.2545, 3010.2545, 3010.0167, 1103.3206, VT1232A

Older / discontinued SPAL reference (still used as a search number)
VA01-BP1-36A

OE / Original Equipment numbers
0008354407 / 0522126
1665816 / 282101002
4866019 / 60101
68935C / 781061
781294 / A0008354407
BMB0522126 / H11000291

Other common cross references in spare part catalogues
2990 331 305 94
299033130594
1,00,50,02,208
1005002208
800000071HO
8000000711HO / 8000000711MO
HTAC1809S

Brand and system references
Konvekta: H11-000-291 / H11000291
Carrier / Sutrak: 28.21.01.002 / 282101002
