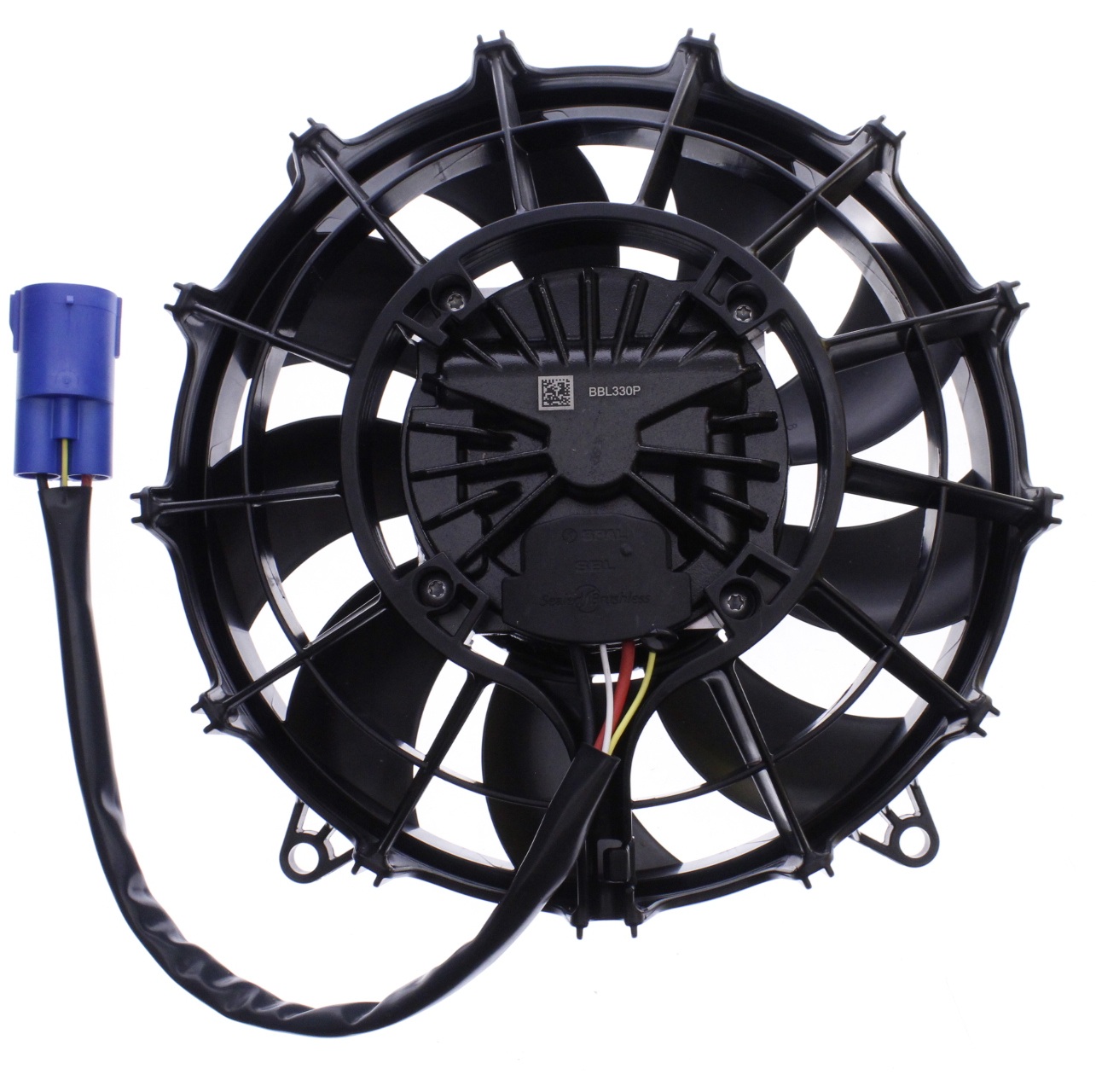

SPAL Brushless Axial Fan VA109-BBL330P/N-109A/SH

SPAL Brushless Axial Fan VA109-BBL330P/N-109A/SH

This 24 V brushless axial fan from SPAL is designed for professional cooling applications where high airflow, reliability and long service life are essential. The brushless motor delivers high efficiency, low noise levels and minimal wear, even during continuous operation in demanding environments.

Specifications
Operating voltage: 24 V DC (16–32 V)
Diameter: Ø 255 mm (10”)
Maximum speed: approx. 4300 rpm
Minimum speed: approx. 1100 rpm
Airflow: approx. 2420 m³/h
Current draw: approx. 12–16.3 A at full load
Power consumption: up to approx. 390 W
Control: PWM and analogue speed control
Protection: IP68 and IP6K9K
Operating temperature: −40 °C to +95 °C
Weight: approx. 2 kg
