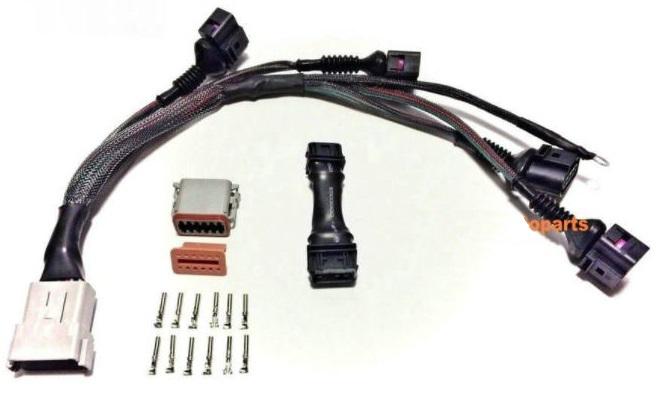

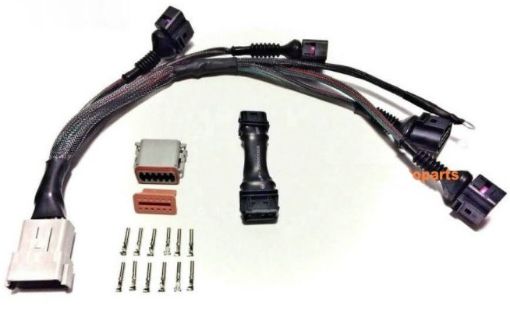

Picture of 1.8T to 2.0T Coil Conversion Harness & ICM Delete for VW Audi FSI Passat A4 B5 Picture of 1.8T to 2.0T Coil Conversion Harness & ICM Delete for VW Audi FSI Passat A4 B5

1.8T to 2.0T Coil Conversion Harness & ICM Delete for VW Audi FSI Passat A4 B5

(3 to 4 contacts) - Used to upgrade to the 2.0T TSI/FSI Coilpacks.
SKU: 1.00232.09021

Availability 3 in stock

Old price: €66,90
€60,21
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

FSI Coil Conversion Harnesses (Set of 4)


Audi  A4  B5 (96-2001)  1.8T (FWD)

Audi  A4  B5 (96-2001)  1.8T (Quattro)

Volkswagen  Passat  B5 (98-2005)  1.8T



CYLINDER 1
Old trigger cyl 1  -> New coil cyl 1 pin 3
+12V ignition      -> New coil cyl 1 pin 1
Ground             -> New coil cyl 1 pin 2
Ground             -> New coil cyl 1 pin 4

CYLINDER 2
Old trigger cyl 2  -> New coil cyl 2 pin 3
+12V ignition      -> New coil cyl 2 pin 1
Ground             -> New coil cyl 2 pin 2
Ground             -> New coil cyl 2 pin 4

CYLINDER 3
Old trigger cyl 3  -> New coil cyl 3 pin 3
+12V ignition      -> New coil cyl 3 pin 1
Ground             -> New coil cyl 3 pin 2
Ground             -> New coil cyl 3 pin 4

CYLINDER 4
Old trigger cyl 4  -> New coil cyl 4 pin 3
+12V ignition      -> New coil cyl 4 pin 1
Ground             -> New coil cyl 4 pin 2
Ground             -> New coil cyl 4 pin 4

*
*
*
