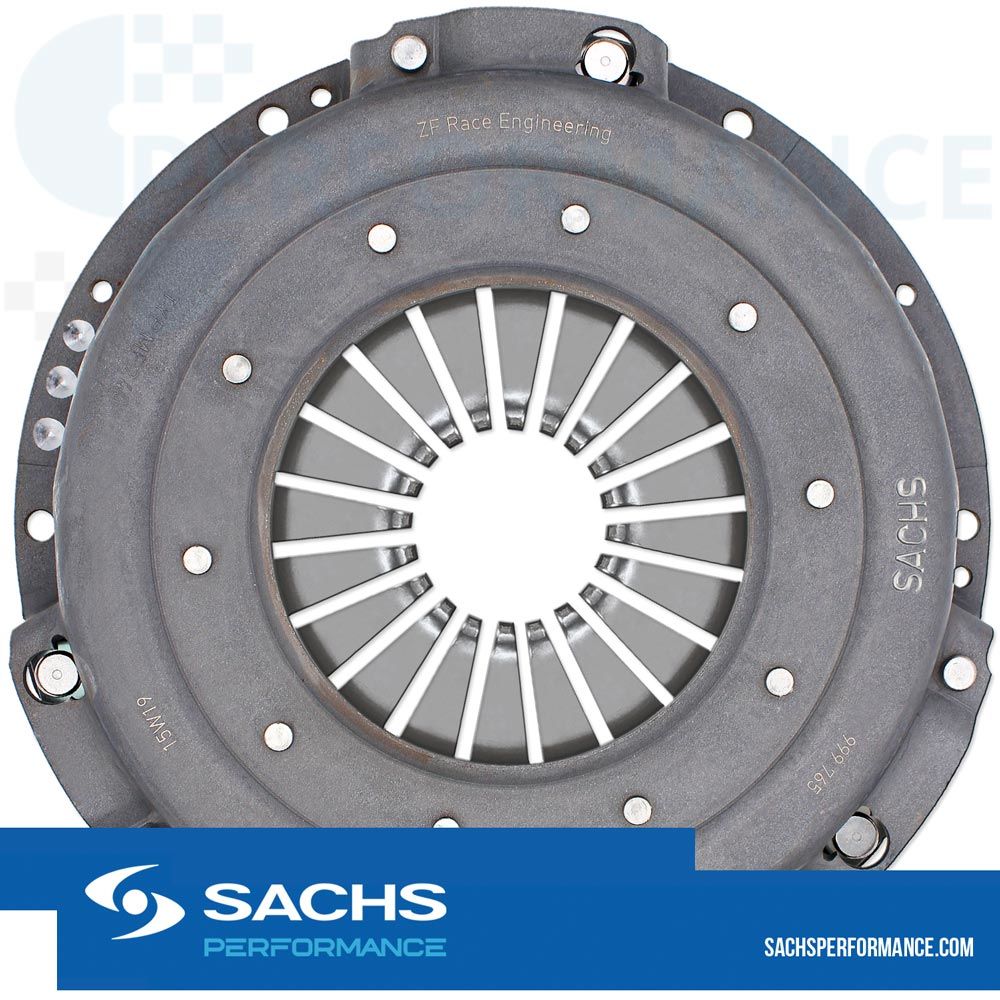

883082.999765 - Clutch presser foot

Specifications – SACHS 765 Pressure Plate
Model: SACHS –765
Vehicle model: BMW M5 E34 (years 1988–1992, 3.6 L engine)
Diameter: 240 mm
Friction disc thickness (organic): 9.2 mm (standard)
Supported torque:
Up to 600 Nm with an organic friction disc
+ 25 % with 6‑puck sintered disc → approx. 750 Nm
+ 30 % with 4‑puck sintered disc → approx. 780 Nm

Installation & Adjustment
Important: The pressure plate is optimized for discs that are 9.2 mm thick.
Using a thicker disc (> 9.2 mm)
If the disc is thicker than 9.2 mm, the pressure plate must be shimmed out corresponding to the additional thickness.
Using a thinner disc (< 9.2 mm)
For example, with an 8 mm sintered disc, 1.2 mm is missing for optimal preload.
Solution: Remove material (1.2 mm) from the flywheel’s surface under the pressure plate so the plate will sit closer to the disc.

Recommendation
Use the correct disc thickness for optimal friction and clutch engagement.
When upgrading to a sintered disc, account for either:
adjustment of the flywheel, or
use of shims when using a thicker disc.
Incorrect spacing can result in poor clutch performance or slipping.
