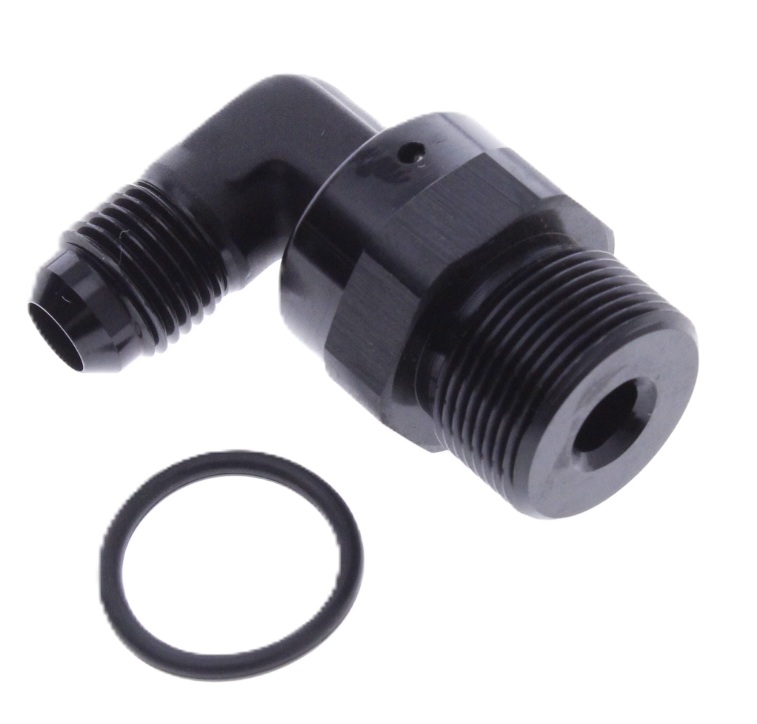

90° AN nipple adapter – AN6 male to AN8 O-ring male – Black

This 90° AN nipple adapter is used as a transition from AN6 male to AN8 O-ring male with 3/4"-16 SAE UNF thread. The angled design makes the adapter suitable where space is limited, or where the hose routing needs to be turned compactly and neatly.

The adapter is made from Black anodised aluminium and can be used in setups with oil, fuel, cooling and other motorsport systems where AN fittings are used.

Specifications
Variant II: 90°
Variant: UNF
Connection 1: AN6 male
Connection 2: AN8 O-ring male / 3/4"-16 SAE UNF
AN8 O-ring side outer diameter: 0.75" / 19.05 mm
AN8 O-ring side inner diameter: 0.69" / 17.48 mm
AN8 O-ring side inch thread: 3/4"
Colour: Black
Material: Aluminium
