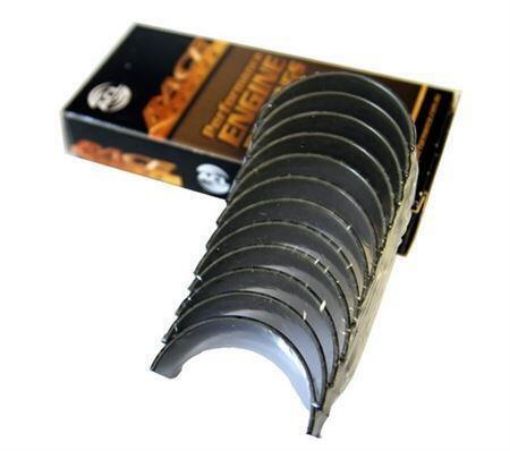

ACL Race conrod bearings for Toyota 1JZ-GE, 1JZ-GTE, 2JZ-GE and 2JZ-GTE engines with crankshaft ground 0.25 millimetres undersize. ACL Race Series is developed for tuning, performance and motorsport, where the bearings are exposed to higher loads, higher RPM and greater oil film demands than standard bearings.
ACL Race Series conrod bearings are manufactured from high-strength F781 trimetal material with hardened steel backing, copper/lead alloy and durable overlay coating. Material choice, heat transfer and oil distribution are developed to handle high cylinder pressures, high engine speeds and demanding operating conditions.
The bearings are the H.25 version, which means they are designed for a crankshaft ground 0.25 millimetres undersize. Correct measurement of the crankshaft, connecting rods and oil clearance is always recommended before installation.
Specifications:
Type: ACL Race conrod bearings H.25
Material: Trimetal copper/lead alloy (F781) with steel backing and overlay
Crankshaft: 0.25 millimetres ground undersize
Connecting rod: For original or aftermarket connecting rods
Bearing design: Identical bearing halves
Contents: 12 bearing halves (6 complete connecting rod bearings)
ACL part number: 6B8100H0.25
Maximum total length: 19.30 millimetres
Maximum shaft size: 51.750 millimetres
Maximum tunnel size: 55.042 millimetres
Maximum wall at crown: 1.631 millimetres
Minimum shaft size: 51.731 millimetres
Minimum tunnel size: 55.024 millimetres
Fits engine code:
1JZ-GE / 1JZ-GTE / 2JZ-GE / 2JZ-GTE
