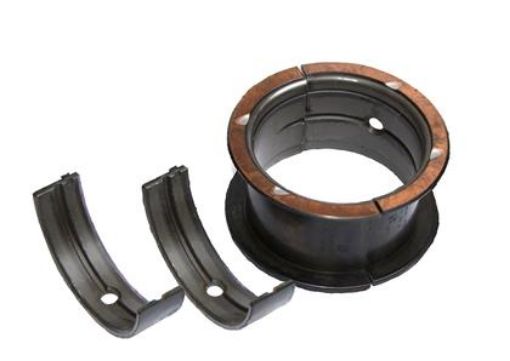

ACL Race connecting rod bearings for Toyota 1JZ-GE, 1JZ-GTE, 2JZ-GE and 2JZ-GTE with standard crankshaft. ACL Race Series is developed for tuning, motorsport and high-output engine builds where higher demands are placed on load capacity, oil film and reliability than with standard bearings. The bearings are often used in Supra, Aristo and other 2JZ projects with both standard and heavily upgraded engines.
ACL Race Series connecting rod bearings are manufactured from high-strength F781 tri-metal material with hardened steel backing, copper/lead alloy and durable overlay coating. The material selection, heat transfer and oil distribution are developed to handle high cylinder pressures, high rpm and demanding operating conditions.
The STD version is supplied for standard crankshaft dimensions and with standard oil clearance. Correct measurement of crankshaft, connecting rods and oil clearance is always recommended to ensure optimal reliability and service life.
Specifications:
Type: ACL Race connecting rod bearings
Material: Tri-metal copper/lead alloy (F781) with steel backing and overlay
Crankshaft: Standard size (STD)
Connecting rod: For original or aftermarket connecting rods
Oil clearance: Standard oil clearance
Bearing design: Upper and lower bearing halves
Contents: 12 bearing halves (6 complete connecting rod bearings)
ACL part number: 6B8100H-STD
Fits engine code:
1JZ-GE / 1JZ-GTE / 2JZ-GE / 2JZ-GTE
