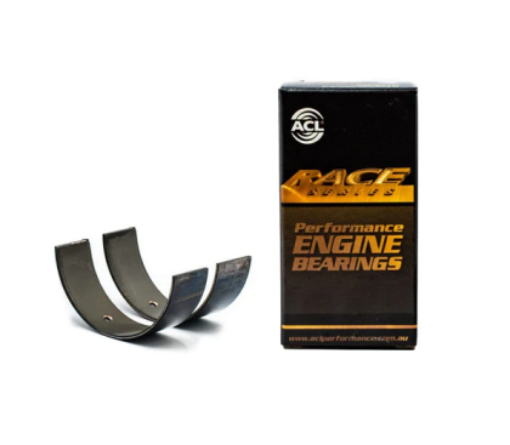

ACL conrod bearings VAG 1.4i/1.6i/1.8T/2.0 TFSI/2.0 TSI

ACL Race connecting rod bearings for VAG 1.4i, 1.6i, 1.8T, 2.0 FSI, 2.0 TFSI and 2.0 TSI engines with standard crankshaft. ACL Race Series is developed for tuning, performance and motorsport, where the bearings are exposed to higher loads, higher RPM and greater demands for load capacity and reliability than standard bearings.

ACL Race Series connecting rod bearings are manufactured from high-strength F781 trimetal material with hardened steel backing, copper/lead alloy and durable overlay coating. The bearings are developed to handle high cylinder pressures, high engine speeds and demanding operating conditions, while heat transfer and oil film are optimised.

Specifications:
Type: ACL Race connecting rod bearings STD
Material: Trimetal copper/lead alloy (F781) with steel backing and overlay
Crankshaft: Standard size (STD)
Connecting rod: For original or aftermarket connecting rods
Oil clearance: Standard
Bearing design: Identical bearing halves
Contents: 8 bearing halves (4 complete connecting rod bearings)
ACL part number: 4B1609H-STD

Maximum total length: 19.00 millimetres
Maximum shaft size: 47.778 millimetres
Maximum tunnel size: 50.619 millimetres
Maximum wall at crown: 1.405 millimetres
Minimum shaft size: 47.758 millimetres
Minimum tunnel size: 50.600 millimetres

Fits engine code:
ARX / AUM / AUQ / AWM / AWP / AWT / AWU / AWV / BJX / BKF / BKV / BLZ / ALT / AWA / AXW / BMB / AXX / BGB / BUL / BWA / BWE
