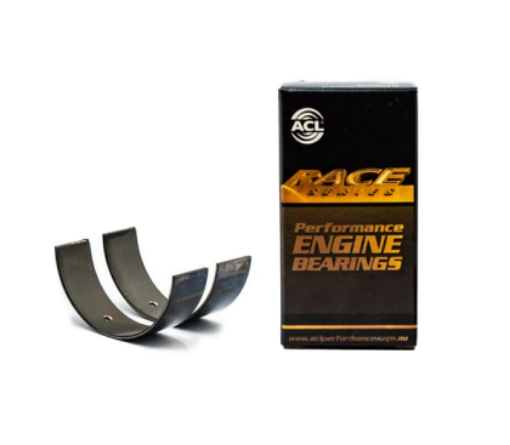

ACL Race Series conrod bearings for VAG 1.4L TSI, 2.0L TFSI CCTA and 2.5L TFSI TT RS engines with standard crankshaft. ACL Race Series is developed for high-load engines and is often used for tuning, motorsport and performance rebuilds where the bearings are exposed to higher demands than in normal road use.
The bearings are built as trimetal bearings with steel backing, copper/lead alloy and a high-strength overlay coating, providing high load capacity, good wear resistance and improved fatigue resistance at high RPM and high cylinder pressure. ACL Race Series is developed to handle the loads often found in modified turbo and motorsport engines.
ACL uses increased “crush” for better bearing retention in the connecting rod, as well as increased eccentricity, which helps maintain a stable oil film at high RPM and compensates for deformation in the engine block and connecting rods under load. In addition, the bearings are manufactured with very precise tolerances, giving consistent bearing clearances and easier engine assembly.
ACL Race Series is a popular choice for both road cars and motorsport projects where reliability and durability are prioritised. The bearings fit original connecting rods and standard crankshaft dimensions.
Specifications:
Type: ACL Race Series conrod bearings
Material: Trimetal high-performance bearing material
Crankshaft: Standard size (STD)
Bearing design: Identical bearing halves
Connecting rod: Original connecting rod
ACL part number: 4B5562H-STD
Maximum total length: 17.4 millimetres
Maximum shaft size: 47.778 millimetres
Maximum tunnel size: 50.619 millimetres
Maximum vertical oil clearance: 0.069 millimetres
Maximum wall at crown: 1.405 millimetres
Minimum shaft size: 47.758 millimetres
Minimum tunnel size: 50.6 millimetres
Minimum vertical oil clearance: 0.014 millimetres
Fits engine code:
BYT / BZB / CABA / CABB / CADA / CAEA / CAEB / CAED / CAWB / CBFA / CCTA / CCZA / CCZC / CDAA / CDHA / CDHB / CDNB / CDNC / CEPA / CEPB / CESA / CETA / CFKA / CHHB / CHHC / CHJA / CJEB / CJED / CJEE / CJSA / CJSB / CJXB / CJXC / CJXD / CJXF / CJXG / CNCB / CNCD / CNCE / CNSB / CPMA / CPMB / CPSA / CTSA / CULB / CULC / CWZA / CYFB / CYGA / CYMC / CYNB / CYPA / CYPB / CYRB / CYRC / CZGA / CZGB / DAXB / DAXC / DAYB / DAZA / DJHA / DJHB / DJYA / DKTB / DLRA / DMFA / DNUE / DNUF / DNWA / CAWA / CCTB / CCZB / CCZD / CDAB / CDND / CEA / CFPA / CGYA / CHHA / CJKA / CJKB / CJSC / CJXA / CJXE / CNSA / CPKA / CPLA / CPPA / CPRA / CULA / CXBA / CXBB / CXCA / CXCB / CXDA / DAJA / DAJB / DCGA / DEDA / DJHC / DJJA / DLBA / DLRB / DNUA / DNUC / DRFA
