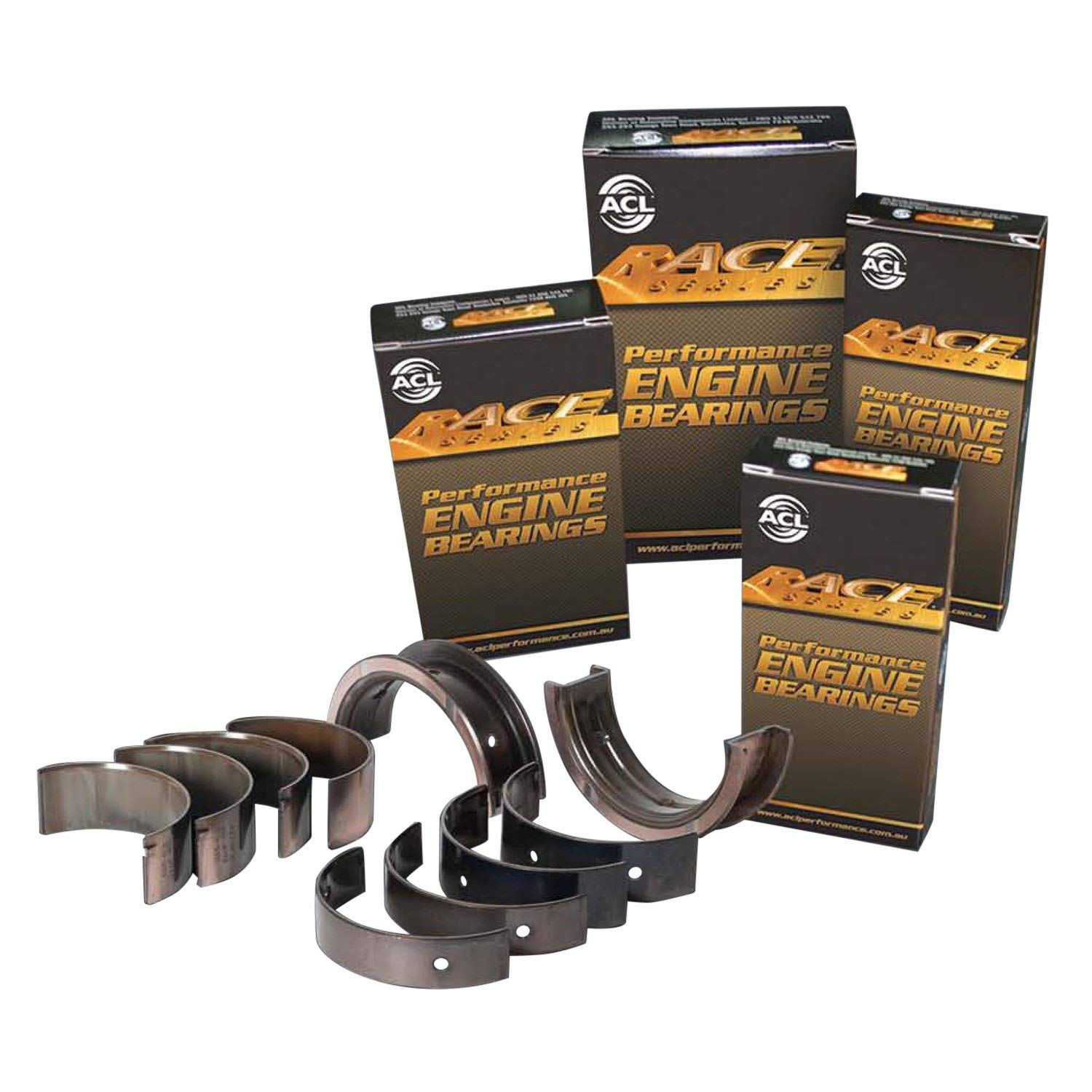

ACL Race main bearings for Toyota 1JZ-GE, 1JZ-GTE, 2JZ-GE and 2JZ-GTE engines with standard crankshaft and reduced oil clearance. ACL Race Series is developed for high-load engines and is often used for tuning, motorsport and performance engine builds where higher demands are placed on the bearings than in a standard rebuild.
ACL Race Series bearings are manufactured from ACL's F780 trimetal material with steel backing, copper/lead alloy and high-strength overlay. This combination provides high load capacity, improved heat transfer and good resistance to stress at high RPM and high cylinder pressure. ACL Race Series is developed for high-performance engines where stable tolerances and high load capacity are essential.
The H.025 version is used for standard crankshaft with approx. 0.001”/0.025 millimetres reduced oil clearance compared to H-STD. Correct measurement of the crankshaft, bearing tunnel and total oil clearance is essential, and the oil clearance must always be checked during engine assembly.
Improvements in material, dynamic thickness, heat transfer, oil grooves and oil distribution are some of the factors that make ACL one of the most widely used manufacturers of performance engine bearings.
Specifications:
Type: ACL Race main bearings
Material: Trimetal copper/lead alloy (F780) with steel backing and overlay
Crankshaft: Standard size (STD)
Oil clearance: Reduced oil clearance, approx. 0.001”/0.025 millimetres less than H-STD
Bearing type: Upper and lower main bearings
Contents: 10 bearing halves (5 complete main bearings)
ACL part number: 7M8103H.025
Maximum total length: 20.0 millimetres
Maximum shaft size: 62.001 millimetres
Maximum housing bore size: 66.035 millimetres
Maximum wall at crown: 2.004 millimetres
Minimum shaft size: 61.984 millimetres
Minimum housing bore size: 66.020 millimetres
Fits engine codes:
1JZ-GE / 1JZ-GTE / 2JZ-GE / 2JZ-GTE
