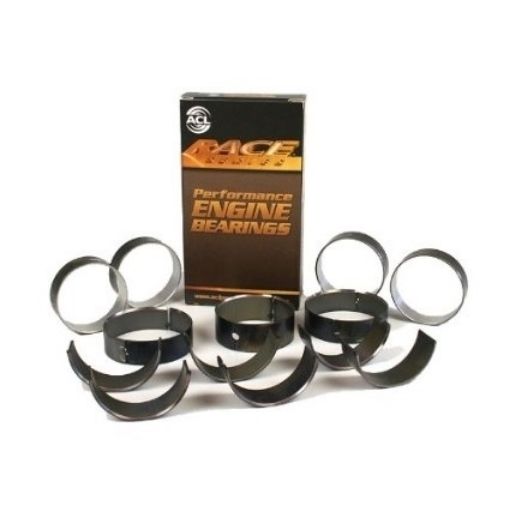

ACL Race main bearings for VAG VR6, R32 and R36 2.8L, 2.9L, 3.2L and 3.6L engines with standard crankshaft. ACL Race Series is developed for high-load engines and is often used for tuning, motorsport and performance rebuilds where higher demands are placed on the bearings than during a standard engine rebuild.
ACL Race Series main bearings are manufactured from high-strength F780 trimetal material and developed to handle high loads, high RPM and increased cylinder pressure. The bearings feature an optimised bearing design, improved heat transfer and advanced oil distribution, helping to maintain a stable oil film under demanding conditions.
The bearings have a 3/4 oil groove, which optimises the balance between load capacity and oil supply to the connecting rod bearings. Improvements in material, dynamic wall thickness, heat transfer, oil grooves and oil distribution are some of the features that have made ACL Race Series a popular choice among engine builders worldwide. Correct oil clearance and precise installation are essential for optimal service life and reliability.
Specifications:
Type: ACL Race main bearings
Material: Trimetal copper/lead alloy (F780) with steel backing and overlay
Crankshaft: Standard size (STD)
Oil clearance: 0.044–0.066 millimetres
Bearing type: Upper and lower main bearings
Contents: 14 bearing halves (7 complete main bearings)
ACL part number: 7M5532H-STD
Maximum total length: 17.00 millimetres
Maximum shaft size: 59.978 millimetres
Maximum housing bore size: 65.010 millimetres
Maximum vertical oil clearance: 0.066 millimetres
Maximum wall at crown: 2.501 millimetres
Minimum shaft size: 59.958 millimetres
Minimum housing bore size: 65.000 millimetres
Minimum vertical oil clearance: 0.044 millimetres
Fits engine codes:
AAA / ABV / AES / AQP / AUE / BDE / BDF / BHK / BJS / BMV / BMX / BPF / BRJ / BRK / BUB / BWS / CBRA / CFLA
