Universal electric fuel level sender for fuel tanks with a depth from 127 mm to 686 mm (5"-27"). The sender can be adjusted to the required tank depth and is compatible with 240-33 Ohm fuel gauges, where the resistance is 240 Ohm when the tank is empty and 33 Ohm when the tank is full.
The robust construction ensures stable and accurate fuel level measurement, making the sender suitable for standard vehicles, motorsport, boats, construction machinery and custom-built projects. Its universal design makes it ideal both as a replacement for a faulty original sender and for new installations.

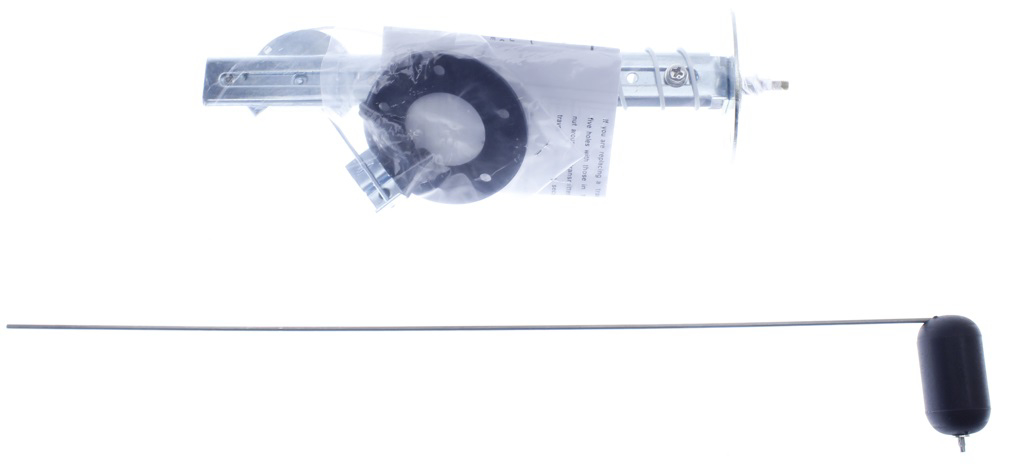

The sender is supplied with an adjustable float arm, allowing it to be adapted to the tank depth for accurate fuel level indication. It is manufactured from high-quality materials for long service life and reliable operation, even under demanding conditions.
Specifications:
Adjustable for tank depths from 127-686 mm (5"-27")
Compatible with 240-33 Ohm fuel gauges
Universal electric fuel level sender
Adjustable float arm
5-bolt mounting flange
Suitable for petrol and diesel tanks
