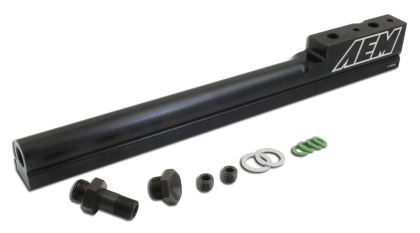

AEM high volume fuel rail for Honda Acura B-series engines with B18B1, B18C1 and B18C5. The fuel rail is developed to provide better fuel flow and is suitable for tuning, turbo, supercharger, larger injectors and motorsport.
The fuel rail has a large 1/2" internal fuel channel, which supports high fuel flow and also helps dampen pressure pulses from larger fuel injectors. It can be used with original injectors, but is especially relevant for upgraded fuel systems with higher power targets.
The AEM fuel rail can be mounted with the original fuel hose using the included fitting, and the ends are prepared for -6 AN or 9/16"-18 fittings if custom fuel hoses are required. It also has a 1/8" NPT port, which can be used for example for a fuel pressure gauge or nitrous setup.
The fuel rail is CNC-machined from billet aluminium, black anodised and supplied with fittings, hardware and O-rings for injectors.
Specifications:
Manufacturer: AEM
Type: High volume fuel rail
Fits: Honda Acura B18B1, B18C1 and B18C5
Engine: Honda 4-cylinder B-series
Material: Billet aluminium
Colour: Black anodised
Internal channel: 1/2"
Connection: Prepared for -6 AN or 9/16"-18 fittings
Extra port: 1/8" NPT
Fuel hose: Can be used with original fuel hose or custom fuel hoses
Injectors included: No
Fittings included: Yes
O-rings included: Yes
