AEM X-Series 30-0301 pressure gauge 0-100 PSI/0-7 bar

AEM X-Series 30-0301 is a digital pressure gauge for oil and fuel pressure. The gauge displays 0-100 PSI or 0-7 bar depending on how the faceplate is turned, and is developed for performance cars, motorsport and engine builds where accurate fluid pressure monitoring is important.

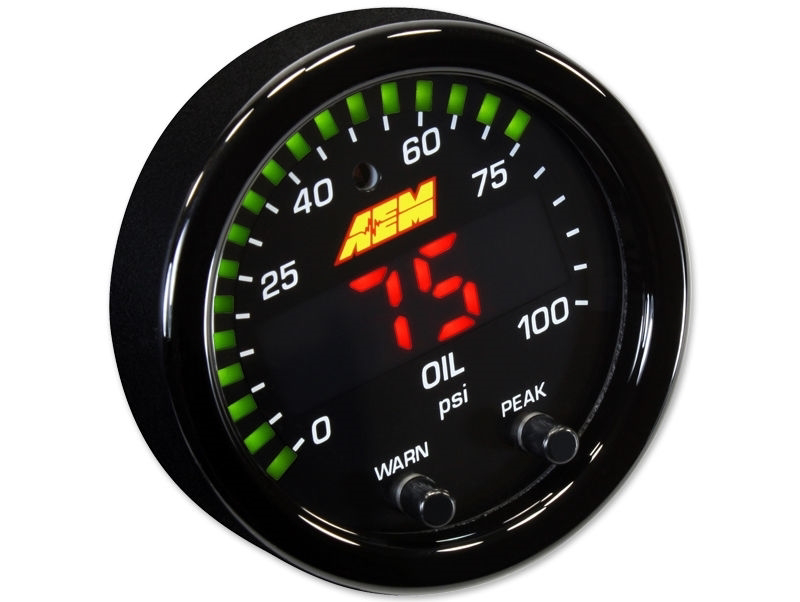

The X-Series gauge has a compact 52 millimetre housing, large digital LED display and a green LED needle around the edge of the display, so the pressure can be read quickly while driving. The low mounting depth makes the gauge easy to install in most gauge holders and gauge pods.

The gauge has functions such as peak/recall, adjustable warning limits, 0-5V analogue output and AEMnet CAN bus, so the signal can be used with data loggers, engine management systems and compatible AEM systems.

Note:
The AEM pressure gauge is supplied as standard with a black bezel and black faceplate for oil pressure. Faceplates and a silver bezel can be purchased separately if the gauge needs to be changed to fuel pressure or another visual design.

Specifications:
Type: Digital oil and fuel pressure gauge
Manufacturer: AEM
Series: X-Series
Measuring range: 0-100 PSI / 0-7 bar
Diameter: 52 millimetres / 2-1/16”
Display: Digital LED display
LED needle: 24 green outer LEDs
Functions: Peak/recall and adjustable warning limits
Output signal: 0-5V analogue output
Data: AEMnet CAN bus
Bezel: Black
Faceplate: Black oil pressure
