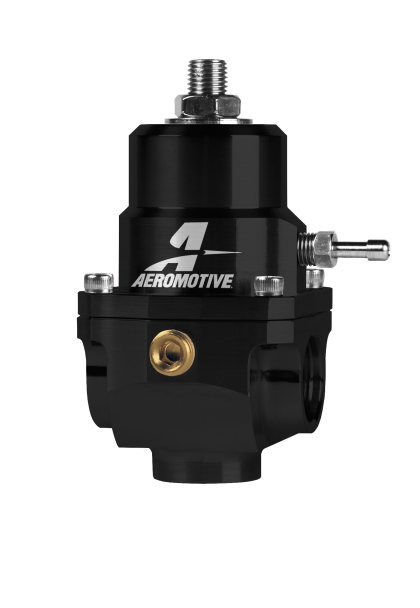

    Aeromotive X1 Series fuel regulator

    Manufacturers: All IN Performance , Aeromotive
    Fuel regulator from Aeromotives X1 series.
    SKU: 1.00155.04-13303

    Availability Special order

    €334,54 incl tax
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Base fuel pressure adjustable from 35-75 PSI.
    0.188″ bypass with matching spring and popped.
    Handles up to 150 GPH with AN-08 return line.
    Suitable for any Aeromotive pump up to A1000.
    X1 regulation service / conversion kit:
    Include seat, diaphragm / popped assembly and spring

    From carburetted to EFI, naturally aspirated or forced induction, the X1 bypass controller is designed to span a wide range of low and high pressure applications, providing the reliable fuel control and pressure control expected from Aeromotive

    The new X1 design eliminates the compromise common to other convertible controller designs with the optimization of all internal components, including diaphragm / camshaft, spring and bypass seat, the X1 delivers all the performance and features you expect from an application-specific bypass regulator, whatever you decide to do with your induction system tomorrow.

    The X1 Series delivers flexible performance that grows as your fuel system grows

    Pressure range: 35-75 PSi
    Regulator style: Return
    Regulator location: Inline
    Boost/vacuum reference port: Yes
    Boost/Vacuum rise ratio: 1:1
    Gauge port: Yes
    Inlet quantity: One
    Inlet size + threads: -8 AN O-ring + female O-ring
    Outlet quantity: One
    Outlet size + threads: -8 AN O-ring + female O-ring

    Return fitting size + threads:  -8 AN O-ring + female =-ring
    Fittings included: No
    Regulator material: Aluminium
    Regulator finished: Black anodized
    Rebuildable: Yes
    Mounting Bracket included:

    No

    *
    *
    *
