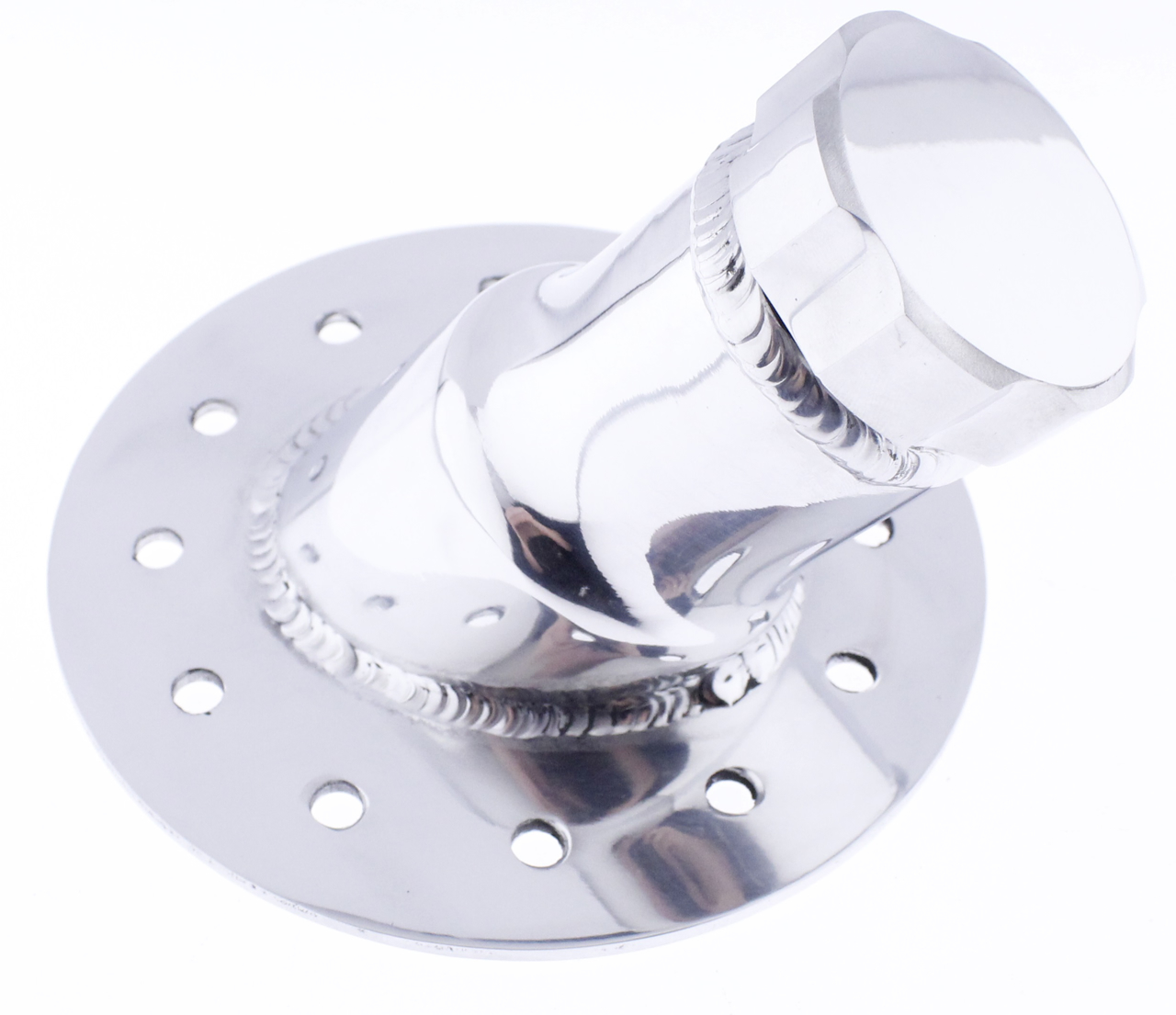

Aluminium fuel cap filler neck

Universal aluminium filler neck for fuel tank, fuel cell and custom-built fuel systems. The filler neck is suitable for motorsport, tuning and project cars where a lightweight and compact solution for tank filling is required.

The filler neck can also be used with a suitable fuel hose if remote filling or integration into a custom-built fuel system is required.

The filler neck is supplied with cap and flange, so it can be mounted in a suitable tank, body panel or other custom solution. Mounting bolts are included.

Specifications:
Type: Filler neck / fuel cap
Material: Aluminium
Mounting: Bolt-on mounting
Number of bolt holes: 12
Bolts: Included

Dimensions:
Flange outside diameter: 155 millimetres
Bolt hole circle diameter: 119 millimetres
Bolt hole diameter: 7.75 millimetres
Filler outside diameter: 55 millimetres
Threaded cap diameter: 41.2 millimetres
Cap outside diameter: 60 millimetres
