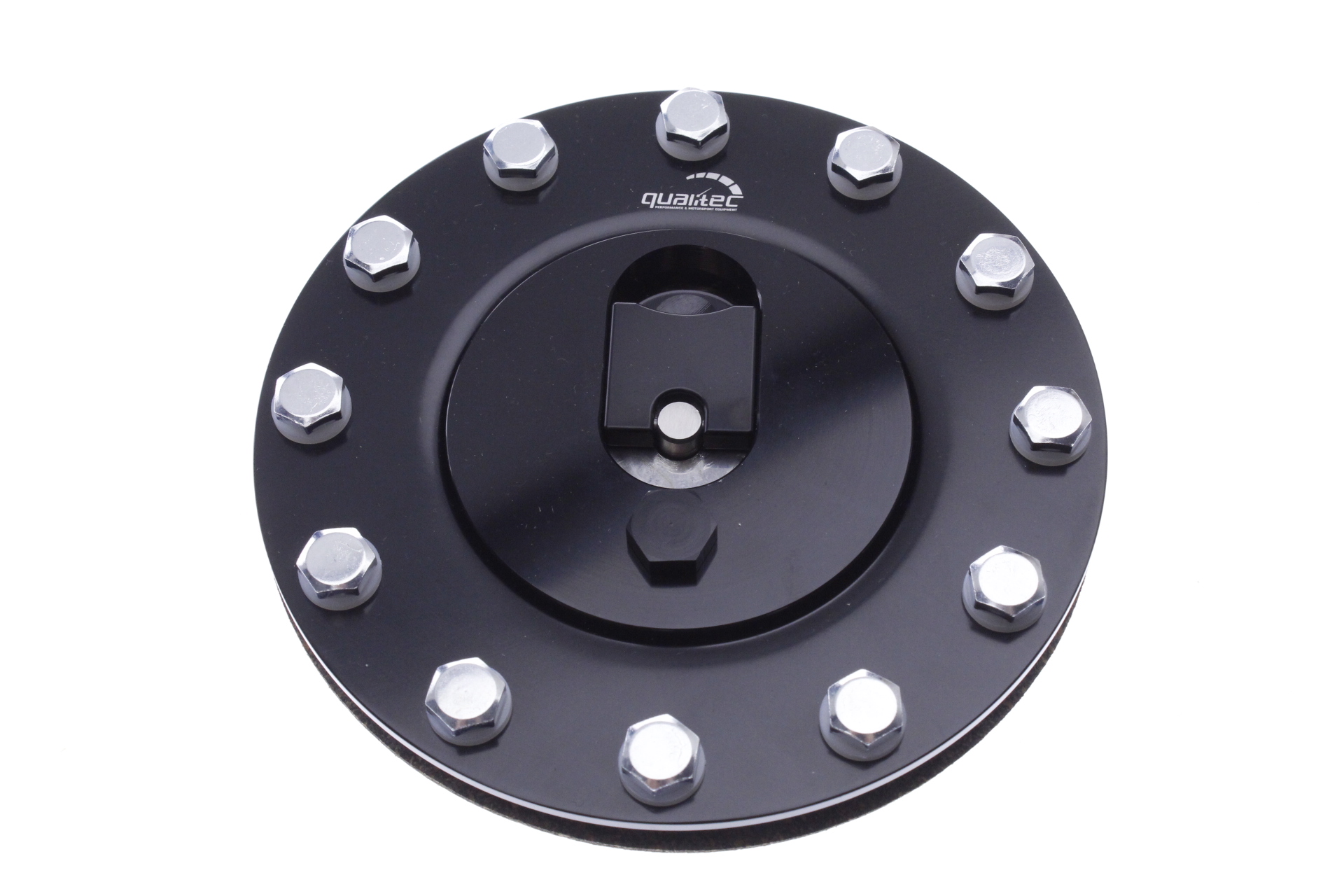

This round aluminium fuel cap is developed for fuel tanks, fuel cells and custom-built fuel systems where a robust and functional filler solution is required. The compact construction makes it suitable for motorsport, tuning and project cars where durability and a professional appearance are important.
The 55 millimetre filler opening makes it possible to use the fuel cap with a suitable fuel hose if remote filling or integration into a custom-built fuel system is required.
The fuel cap is equipped with a vent screw, which helps with pressure equalisation in the tank. Sealing is handled by a Viton O-ring, which is resistant to petrol, diesel, E85 and many types of motorsport fuel. Both gasket and mounting bolts are included, so the unit is ready for installation.
Specifications:
Type: Fuel cap with vent screw
Material: Aluminium
Colour: Black
Seal: Viton O-ring
Mounting: Bolt-on mounting
Gasket: Cork
Bolts: Included
Measurements:
Outer flange diameter: 140 millimetres
Bolt hole circle diameter: 120 millimetres
Bolt hole diameter: 7.75 millimetres
Outer filler diameter: 55 millimetres
Outer cap diameter: 78 millimetres
