AN nipple adapter – AN6 male to AN6 O-ring male – Black

AN nipple adapter – AN6 male to AN6 O-ring male – Black

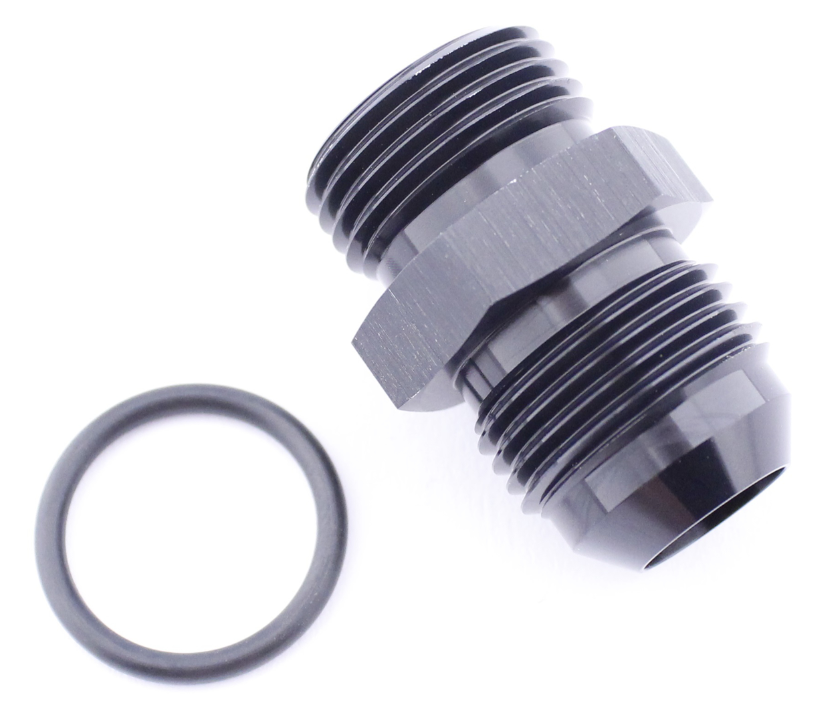

This AN nipple adapter is used as a transition from AN6 male to AN6 O-ring male with 9/16"-18 SAE UNF thread. The adapter is suitable for oil, fuel, cooling and motorsport systems where AN fittings are used and a compact threaded transition is required.

The adapter is made from Black anodised aluminium and fits builds where low weight, good corrosion resistance and a clean finish are important.

Specifications
Connection 1: AN6 male
Connection 2: AN6 O-ring male / 9/16"-18 SAE UNF
Variant: UNF
AN6 O-ring side thread outer diameter: 0.56" / 14.28 mm
AN6 O-ring side thread inner diameter: 0.51" / 12.90 mm
Colour: Black
Material: Aluminium
