AN10 stainless steel oil return flexible pipe - 200mm.

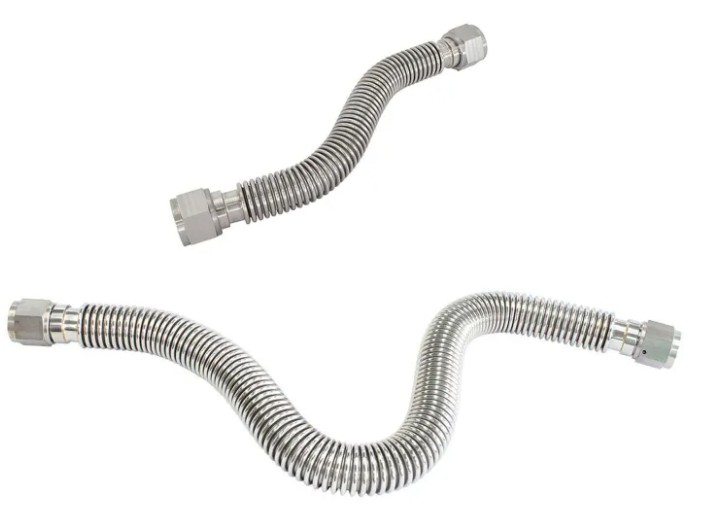

AN10 stainless steel oil return flexible pipe

This AN10 stainless steel oil return flexible pipe is a simple and flexible solution for turbo oil return systems and other custom applications. The pipe can be bent into the required shape during installation, so you do not need to be limited by a fixed pipe shape or worry about whether it will fit the specific turbo or setup you have chosen.

A major advantage of this type of flexible pipe is that it can be used for many different purposes where a strong, heat-resistant, and flexible connection is required. This makes it suitable for turbo oil return, oil filter relocation, crankcase ventilation, oil cooler systems, vacuum, oil, and water. The swivel AN10 female ends make installation easier and provide better flexibility when fitting the pipe in engine bays with limited space.

The pipe is extremely flexible and can be bent to a small radius of only around 9 cm, making it easy to adapt in tight and high-temperature areas. Because the hose is made from high-quality stainless steel, it can be installed in exposed areas close to the cylinder head, manifold, turbo, and exhaust system, where temperatures are high, without the same risk of damage or leaks as with more sensitive solutions.

It is a practical solution for motorsport, performance builds, and custom projects where high flexibility, long durability, and easy installation are important.

Specifications
Connection: AN10 swivel female
Material: Stainless steel
Outer diameter: 27 mm
Length of fittings before flex section: 44 mm
Bend radius: Approx. 9 cm
Applications: Turbo oil return, oil filter relocation, crankcase ventilation, oil cooler, vacuum, oil, and water
