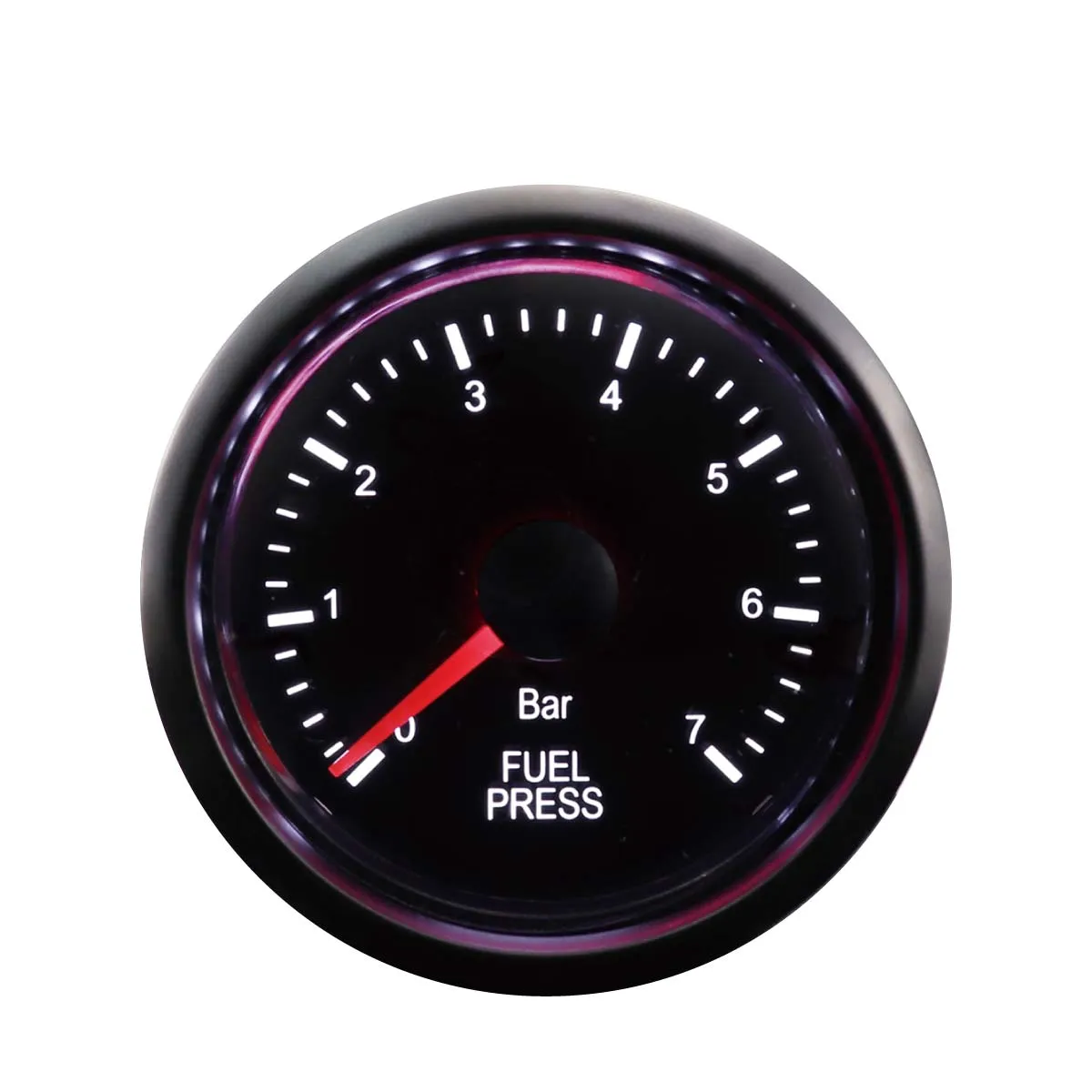

Autogauge fuel pressure gauge 0-7 bar

Autogauge fuel pressure gauge is a full digital 52 millimetre gauge for monitoring fuel pressure in performance and motorsport applications. The gauge has a measuring range from 0 to 7 bar and is supplied with a matching fuel pressure sensor.

The gauge is part of the Autogauge A27 series and uses an electric stepper motor to drive the needle. This provides a fast, precise and stable display of the fuel pressure compared to traditional gauges.

It is possible to set an alarm setpoint, allowing the gauge to warn at a selected pressure level. An external warning lamp can also be connected and is purchased separately. This makes the gauge suitable for cars where fuel pressure must be clearly monitored under load.

Another advantage of this series is the very low installation depth of under 30 millimetres including connector. This makes the gauge easier to install in dashboards, gauge holders and other locations where space behind the gauge is limited.

The lighting can be white or amber depending on connection. This makes the gauge easier to match with the car’s other instrument lighting.

Note:
Always check compatibility between gauge, sensor, thread type, pressure range and fuel system before installation. External warning lamp is not included.

Specifications:
Type: Digital fuel pressure gauge
Series: Autogauge A27
Measuring range: 0-7 bar
Installation hole diameter: 52 millimetres
Installation depth: Under 30 millimetres including connector
Lighting: White / amber LED
Technology: Electric stepper motor
Alarm function: Setpoint alarm
External warning lamp: Can be connected, purchased separately
Lens: Clear lens

Contents:
1 x Autogauge fuel pressure gauge 0-7 bar
1 x Fuel pressure sensor
1 x Connector with 20 centimetres wire for power
1 x 100 centimetres intermediate cable for sensor
1 x Visor frame
1 x Mounting bracket
