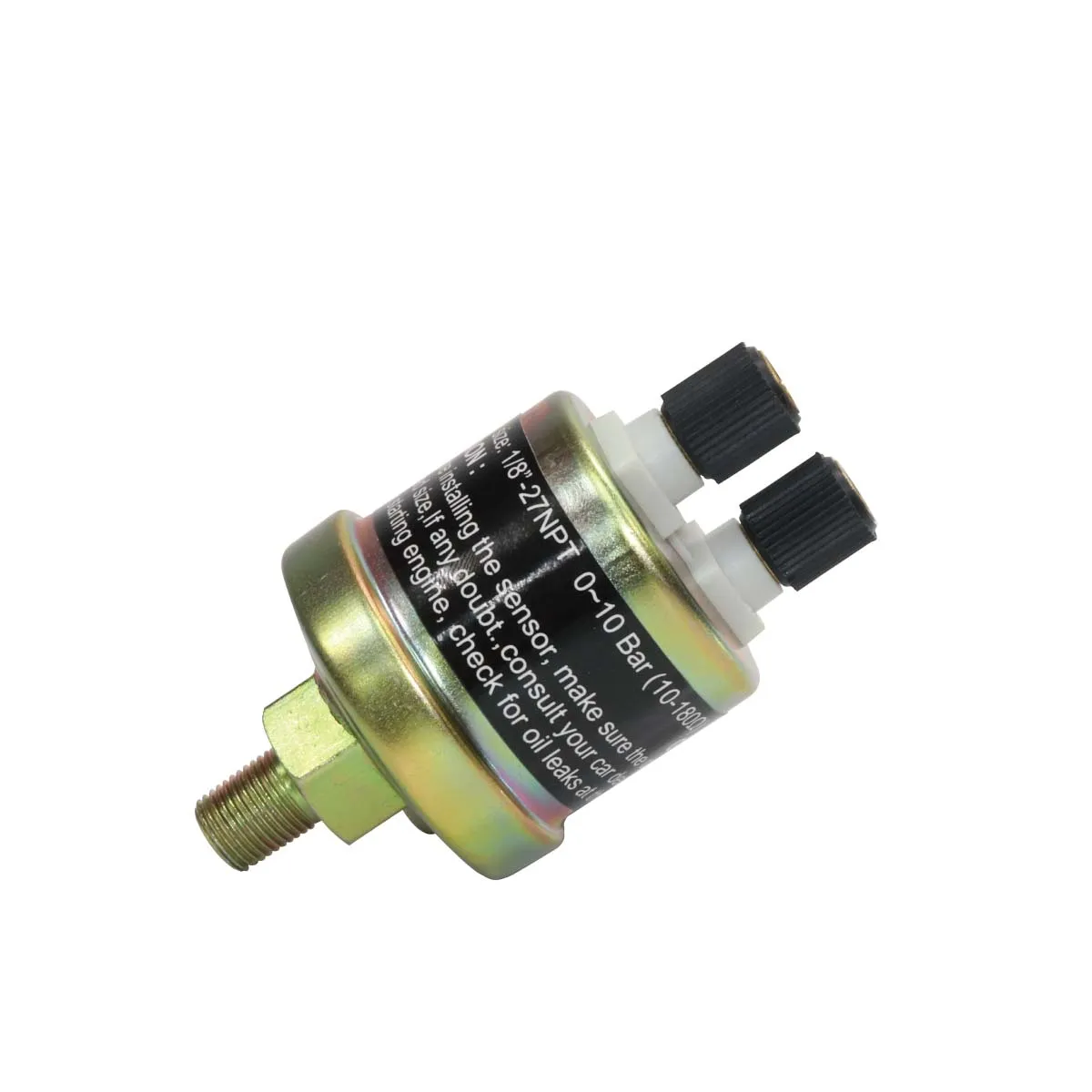

Autogauge fuel pressure sensor 0-10 bar/10-180 Ohm

This fuel pressure sender is a fuel pressure sensor for use with compatible fuel pressure gauges. The sensor has a measuring range of 0-10 bar and a signal range of 10-180 Ohm.

The sensor is equipped with 1/8"-27 NPT thread and can be mounted in a suitable adapter, fuel rail, fuel pressure regulator or another suitable connection in the fuel system. The terminals are marked G and M, where G is used for gauge/signal, and M is used for ground/earth.

Note:
Always check compatibility between sensor, gauge, thread type, pressure range and fuel system before installation.

Specifications:
Type: Fuel pressure sensor
Measuring range: 0-10 bar
Signal range: 10-180 Ohm
Thread: 1/8"-27 NPT
Terminals: G-gauge / M-ground
Gauge compatibility: Electric gauges with 10-180 Ohm input
Mounting: Thread mounting
