BMW E60/E61/E81/E82/E87/E88/E90/E91/E92/E93 camber plates

BMW camber and caster plates for E60, E61, E81, E82, E87, E88, E90, E91, E92 and E93, developed for adjustment of the front wheels’ camber and caster for drift, trackday, motorsport, stance and performance driving.

These 3D camber plates are mounted at the top of the strut and allow the front wheel angle to be changed, so the front axle geometry can be adapted to the car’s setup. This makes them relevant for cars with lowered suspension, coilovers, wider wheels, a more aggressive setup or the need for more precise steering.

By adjusting camber and caster, the car’s steering feel, wheel positioning and front-end response can be optimised. This can provide more controlled steering, better steering wheel self-centring and better options for individual setup for drift, rally, trackday and motorsport.

The construction is made from 10/13 millimetre thick aluminium and CNC-machined for high precision and consistent fitment. The surface is black anodised for better corrosion protection and a more durable finish under demanding use. The inner bushing has a Ø12 millimetre diameter, so the car’s strut/coilover must be checked before purchase and installation.

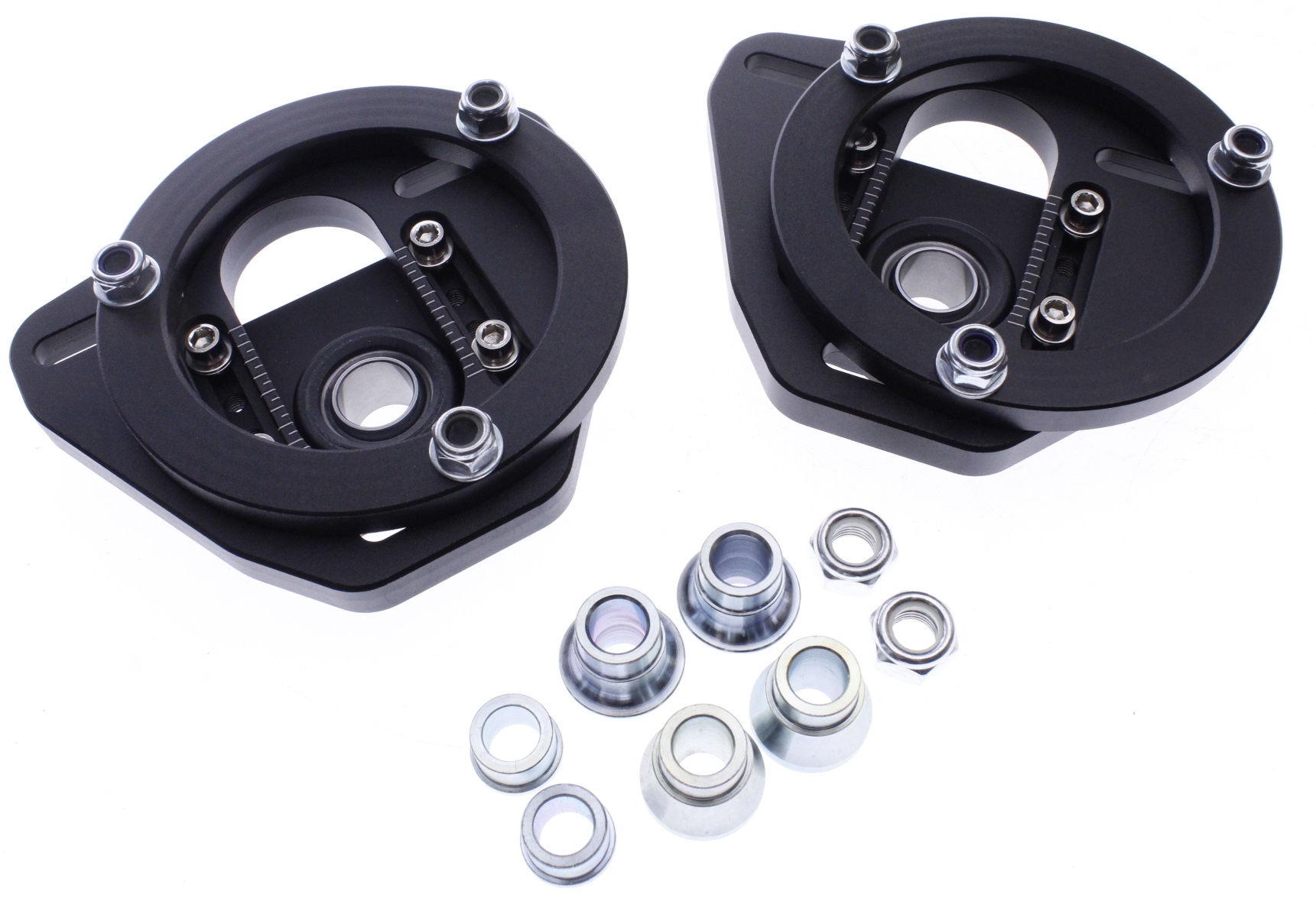

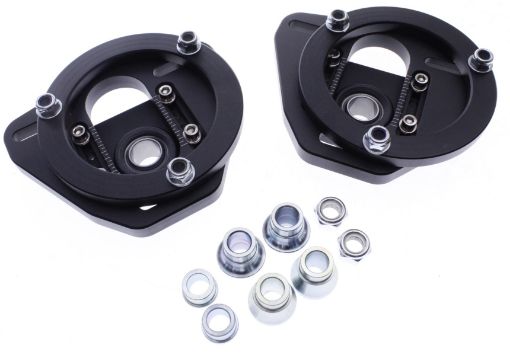

The set is supplied with two camber plates, two M12x1.25 nuts and two conical washers.
