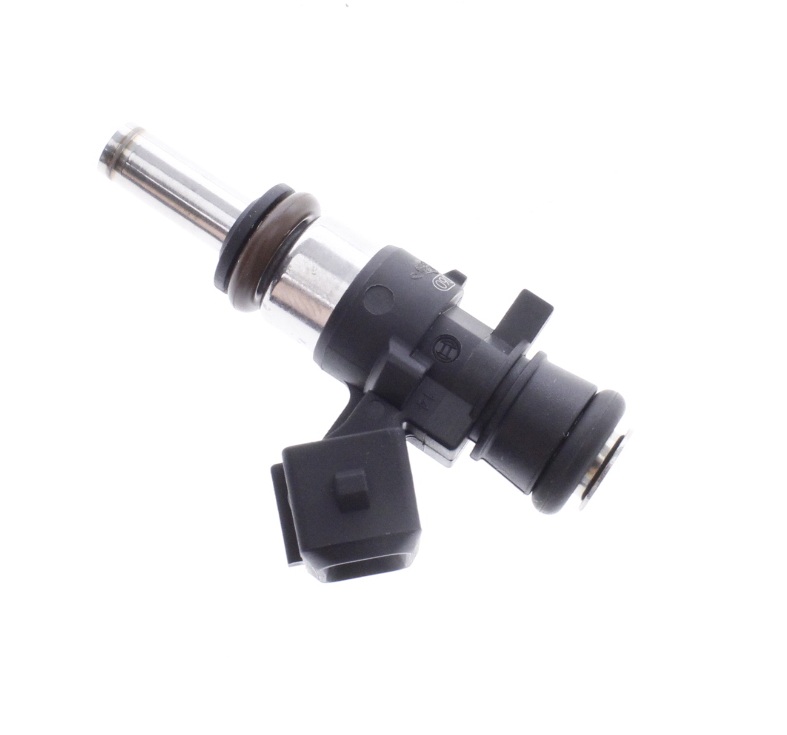

Bosch injector 1300cc

1300cc Bosch injector for tuning, turbo engines and motorsport where high fuel flow and stable delivery under high load are required. The injector is typically used for performance builds, aftermarket engine management and turbo engines where a standard injector cannot supply enough fuel.

The injector is a Bosch injector that is E85 and M100 compatible and can handle several fuel types due to internal stainless-steel components.

This type of Bosch injector is often used in both street cars and motorsport projects with turbo or supercharger setups, where stable operation, precise fuel dosing and good control at high power levels are required.

When used with petrol, the injector can be calculated for approximately 171 horsepower per cylinder, while on E85 it can be calculated for approximately 149 horsepower per cylinder. E85 typically requires a higher fuel amount than petrol for the same power output, which means the possible power per injector will be lower on E85. The figures are indicative and based on turbo engines with approximately 90% duty cycle.

Note:
Correct tuning and injector data in the engine management system are required when fitting larger injectors. Always check connector type, length and compatibility with the fuel rail and intake before installation.

Note:
If the injector is used with methanol, it should be flushed through with regular fuel after use. It should not be left with methanol in the system for longer periods.

Specifikationer:
Injector size: 1300cc
Bosch number: 0280 158 xxx modified
Supplied as: 1 injector incl. 2 adapters
Connector type: Bosch JPT EV1 Minitimer / Jetronic
Injector type: EV14C Compact
Length without adapter (EV14C): 33.6 millimetres
Length with long adapter (EV14L): 60.65 millimetres
Injector tip: xT, 24 millimetres
Top O-ring: 14 millimetres Viton
Bottom O-ring: 14 millimetres Viton
Diameter: 16 millimetres
Resistance: 12 ohm
Spray type: Conical spray
Spray angle: 30°
Spray direction: 0° / straight
Calculated petrol power: Up to 170 horsepower per cylinder
Calculated E85 power: Up to 148 horsepower per cylinder
Fuel compatibility: E85 / M100 compatible
