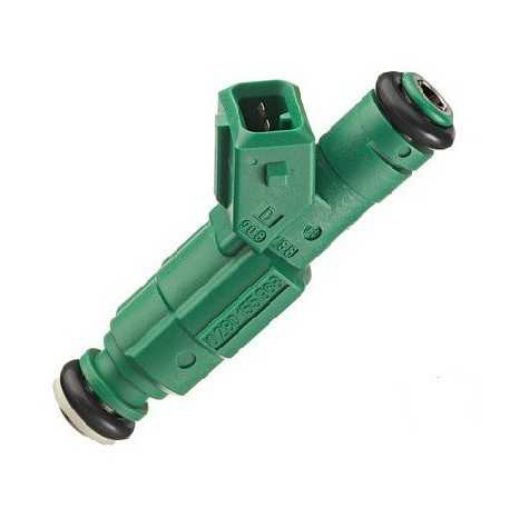

Bosch injector 465cc

A Bosch 465cc injector is suitable for fuel systems, tuning and engine builds where higher fuel flow than standard injectors is required. The injector has a size of 465cc and is suitable for turbo engines, performance upgrades and motorsport applications where correct fuel delivery is important.

The injector is a Bosch 12 ohm injector used on several Volvo turbo models, but it can also be used in other engine setups if dimensions, connector type, resistance and flow match the specific installation.

When used with petrol, the injector can support approximately 57 horsepower per cylinder, while on E85 it can support approximately 49 horsepower per cylinder. E85 typically requires a higher fuel volume than petrol for the same power output, which means the achievable power per injector will be lower on E85. The figures are approximate and based on turbo engines running at around 90% duty cycle. Actual performance depends on fuel pressure, engine setup, boost pressure, fuel type, ECU calibration and how conservatively the injector is operated.

Note:
If the injector is used with methanol, it should be flushed through with regular fuel after use. It should not be left with methanol in the system for extended periods.

Specifications:
Injector size: 465cc
Resistance: 12 ohm
O-ring center to center: 65 millimeters
O-ring diameter: 14 millimeters
Distance between O-rings: 60.65 millimeters
Estimated petrol performance: Up to 57 hp per cylinder
Estimated E85 performance: Up to 49 hp per cylinder
Fuel compatibility: E85 / M100 compatible

Original vehicle models:
Volvo C70 2.4T 200 hp 2002-2005
Volvo S60R 2.5T AWD 300 hp 2003-
Volvo V70 2.3 AWD 265 hp 1998-2000
Volvo V70 2.5T AWD 300 hp 2003-
