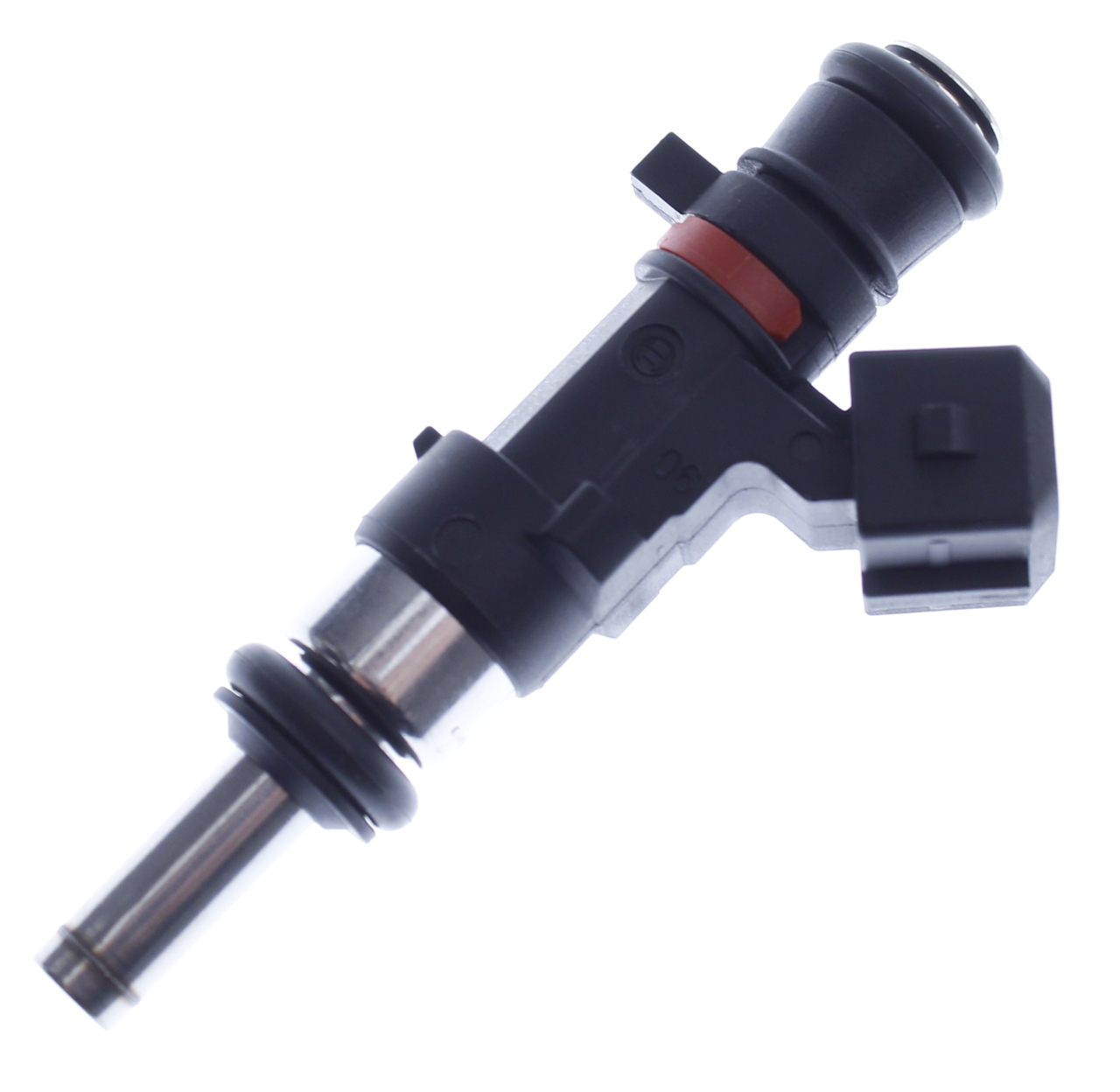

Bosch injector 630cc

630cc Bosch injector for fuel systems, tuning and engine builds where higher fuel flow than standard injectors is required. The injector has a size of 630cc and is suitable for turbo engines, performance upgrades and motorsport applications where correct fuel delivery is important.

The injector is a Bosch 12 ohm injector that is E85 and M100 compatible and capable of handling multiple fuel types due to internal stainless steel components. It is originally used in Porsche 997 GT2, GT2 RS and 3.6 Turbo models, but it can also be used in other engine setups if dimensions, connector type, resistance and flow match the specific installation.

When used with petrol, the injector can support approximately 83 horsepower per cylinder, while on E85 it can support approximately 72 horsepower per cylinder. E85 typically requires a higher fuel volume than petrol for the same power output, which means the achievable power per injector will be lower on E85. The figures are approximate and based on turbo engines running at around 90% duty cycle. Actual performance depends on fuel pressure, engine setup, boost pressure, fuel type, ECU calibration and how conservatively the injector is operated.

Note:
If the injector is used with methanol, it should be flushed through with regular fuel after use. It should not be left with methanol in the system for extended periods.

Specifications:
Injector size: 630cc
Resistance: 12 ohm
O-ring center to center: 54 millimeters
O-ring diameter: 14 millimeters
Estimated petrol performance: Up to 83 hp per cylinder
Estimated E85 performance: Up to 72 hp per cylinder
Fuel compatibility: E85 / M100 compatible

Original vehicle models:
Porsche 997 3.6 GT2 530 hp 2007-2012
Porsche 997 3.6 GT2 RS 620 hp 2010-2012
Porsche 3.6 Turbo 480 hp 2006-2009

OEM numbers:
997 605 132 00
997 605 132 01
997 605 132 02
