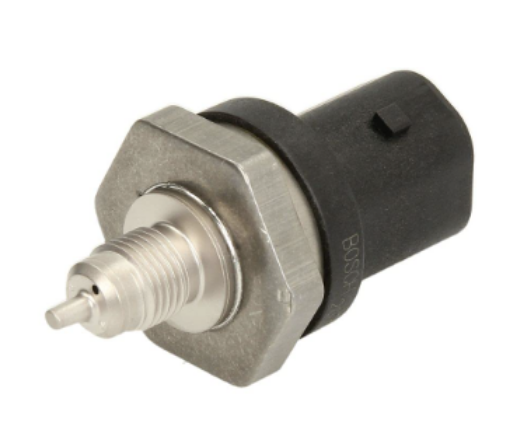

Bosch Pressure and Temperature Sensor (10 bar / 140°)

Bosch Motorsport Sensor

>>>SEE OUR ALTERNATIVE<<<
Same specifications and high quality

Measures both pressure and temperature Thread: M10x1.0

Bosch part number: 0261230340 / 0 261 230 340

Alternative Bosch no. 0261230482

Pin 2: pressure signal output (0.5V = 0 bar, 4.5V = 10 bar)
Pin 3: +5V sensor supply
Pin 4: sensor GND
Pin 5: temperature signal output (0.5V = -40 °C, 4.5V = 140 °C)

Diesel, Petrol, Ethanol, Water, Engine oil, Transmission oil
(Note: shorter lifespan with ethanol)
