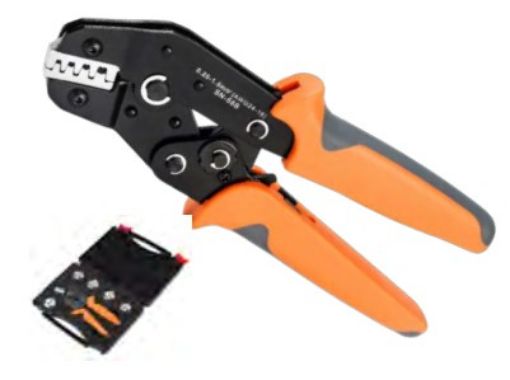

Practical and versatile crimping tool for anyone working with electrical installations, cable terminals and connector joints. This universal crimping tool is supplied with 6 interchangeable jaws, allowing you to handle many of the most common tasks with one complete set. The tool is suitable for both insulated and non-insulated cable terminals and is a good choice for workshops, garages and motorsport projects.
The tool is 200 millimetres long and has both a locking function and adjustable pressure, giving you better control during use. This makes it easier to achieve a safer and more consistent crimp connection. The set is also supplied in a practical storage box, so the jaws and tool are kept together.
Included jaws:
SN-58B
For non-insulated cable terminals
0.25-1.5 mm² (24-16 AWG)
SN-02C
For insulated cable terminals
0.25-2.5 mm² (24-14 AWG)
SN-06WF
For non-insulated cable terminals
0.25-6 mm² (24-10 AWG)
SN-06
For non-insulated cable terminals
0.5/2.5/6 mm² (20/14/10 AWG)
SN-2546B
For non-insulated cable terminals
2.5/4/6 mm² (14/12/10 AWG)
SN-03H
For RF connector crimp sleeve
1.0-4.5 mm
