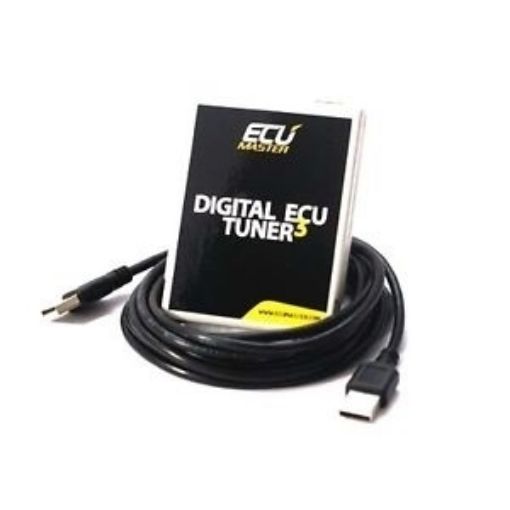

    DET3 - ECU master - 400 KPA

    Manufacturer: ECU Master
    "piggy back" ECU from ECU master super quality and cheap price.
    SKU: 1.00145.05-03Z2DI0001 - DET3-400KPA+

    Availability Special order

    Old price: €335,21 incl tax
    €310,07 incl tax
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    DET3 - ECU master - "Piggy back" motor control

    Digital ECU tuner 3 from ECU master, is a piggy back motor control with built-in 400 KPA map sensor.

    Download manual

    Technical details:

    • four 16x16 side tables (fuel map, two PWM tables, ignition table)

    • 8 Correction tables 16x1,

    • 2 independent switchable map sets,

    • possibility modification of one analog signal

    • 4 analog inputs,

    • inbuilt Data Flash - possibility of logging without connected PC,

    • battery voltage monitoring,

    • support of frequency output air flow meter (possibility of signal modification) 17Hz-4kHz,

    • support VR and Hall effect crank sensors together with ignition modules pulse. Device supportbothsingle ended and differential signals,

    • supports a lot of crank trigger patterns: 60-2, 36-2, 36-1, Multitooth, Ignition Modules and more,

    • support of waste gate valve,

    • output for 4 saturated injectors ("full group"),

    • ON / OFF parametric output,

    • automatic conversion of MAP to MAF with the use of the learning algorithm,

    • launch control,

    • road dyno,

    • possibility individual calibration of each analog sensor - device displayed values with correct units,

    • free firmware update - new crank trigger patterns and new functionality,

    • fuel Implant mode –possibility of drive injectors in standalone mode (batch fire),

    • USB communication no additional interface needed

    *
    *
    *
