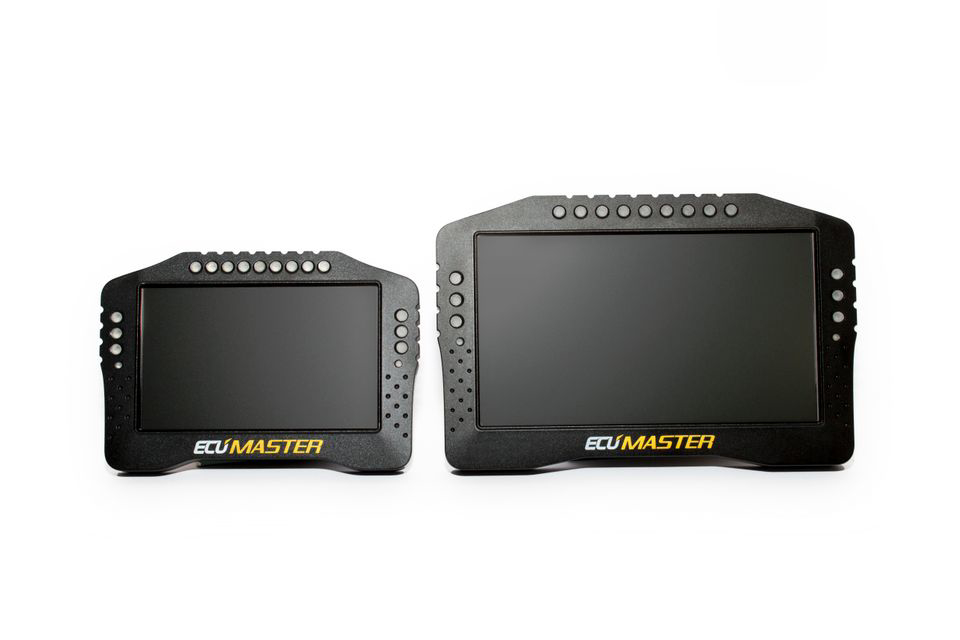

ECU Master ADU

5" & 7"
Manufacturer: ECU Master

General:

Temperature rangeAECQ100 GRADE1 (-40 to +85degrees C
Reverse battery protectionYes, internal
Operating voltage6-22V, immunity to transients accotrding to ISO 7637
EnclosureIP 60, custom CNC machined aluminium
Connectors1x35 positions, AMP Automotive connector
PC communicationCAN BUS - ECUmaster interface, Peak or Kvaser
Display typeTFT 800x480
Brightness of display5" - 600cd/m2, 7" - 1000 cd/m2

Inputs / outputs

Analogue inputs8 inputs, 10 bits, 0-5V, software controlled pull-up/pull-down 10k resistor. Al analog inputs can be used as switches
Digital inputs8 digital inputs, software controlled input sensitivity (VR, Hall), software controlled 4K7 pull-up resistors, used for engine speed sensors, Flex Fuel, wheel speeds, turbocharger shaft speed. All digital inputs can be used as switches
Outputs2 low side outputs (switch to ground), up to 2A, 1 analogue output (0.5V) 10 bits
+5V OutputMonitored 5V output for powering external sensors

ECU Master ADU - 5"

Availability: Out of Stock - on backorder and will be dispatched once in stock.

11.536,06 kr
Picture of ECU Master ADU - 5"
ECU Master ADU - 7"

Availability: Out of Stock - on backorder and will be dispatched once in stock.

SKU: 1.00145.05-ADU
14.252,02 kr
Picture of ECU Master ADU - 7"
