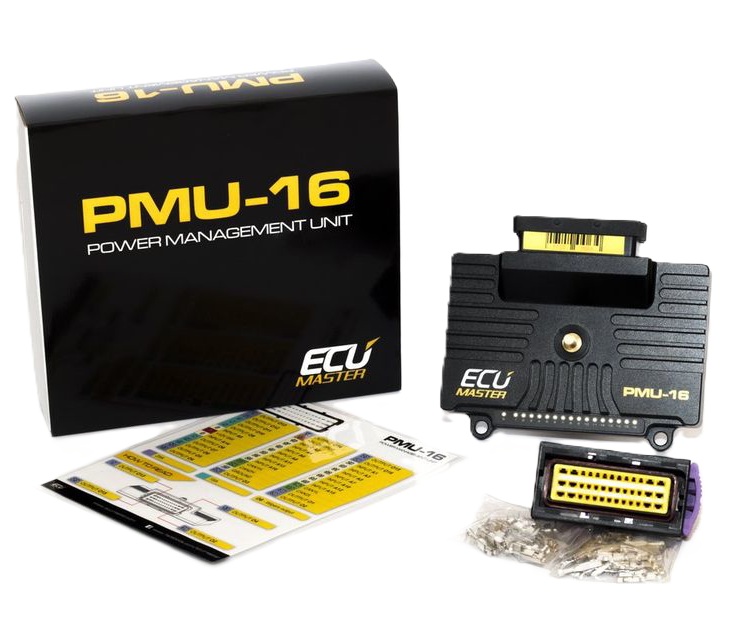

ECU Master PMU

Manufacturer: ECU Master

General

Temperature rangeAECQ100 GRADEE1 (-40 to +125 degrees Celcius.
CPU32 bits automotive, 90 MIPS
Reverse polarity protectionYes, internal
Operating Voltage6-22V, immunity to transients accordig to ISO 7637
EnclosureIP 60, bespoke CNC machined aluminium
Size (mm) and weight (g)131x112x32.5 - 345g
Connectors1x 39 Automotive connector, 1x M6 stud for battery connection
PC Communication

CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER)

Outputs:

High current outputs10x25A(cont.), 6x 15A(cont.) with overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output.
Total current output150A continuous
Output current control step100mA
Wipers outputDedicated output with wiper braking feature
+5VMonitored 5V, 500mA output for powering external sensors.

Inputs:

Analog inputs16 inputs, 10 bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
CAN Keypads2x ECUmaster keypads (4, 6, 8, 12 keys)

ECU Master PMU - Standard

Availability: 1 in stock

SKU: 1.00145.05-PMU-16
10.913,84 kr
Picture of ECU Master PMU - Standard
ECU Master PMU - With datalogger

Availability: Out of Stock - on backorder and will be dispatched once in stock.

SKU: 1.00145.03-PMU-16DL
12.278,92 kr
Picture of ECU Master PMU - With datalogger
ECU Master PMU - Autosport Version

Availability: Out of Stock - on backorder and will be dispatched once in stock.

18.940,52 kr
Picture of ECU Master PMU - Autosport Version
