This EGR Removal / Delete Kit is designed for Volkswagen R5 2.5 TDI engines and replaces the original EGR valve with a solid bypass solution. The purpose is to eliminate exhaust gas recirculation, reducing carbon build-up in the intake system and ensuring a more stable and consistent airflow to the engine. The kit is manufactured from stainless steel and engineered for maximum durability under demanding conditions.
This solution is typically used for motorsport or vehicles not operated on public roads. On older models, fault codes will usually not appear, while newer models may require ECU modification to operate without warning lights.

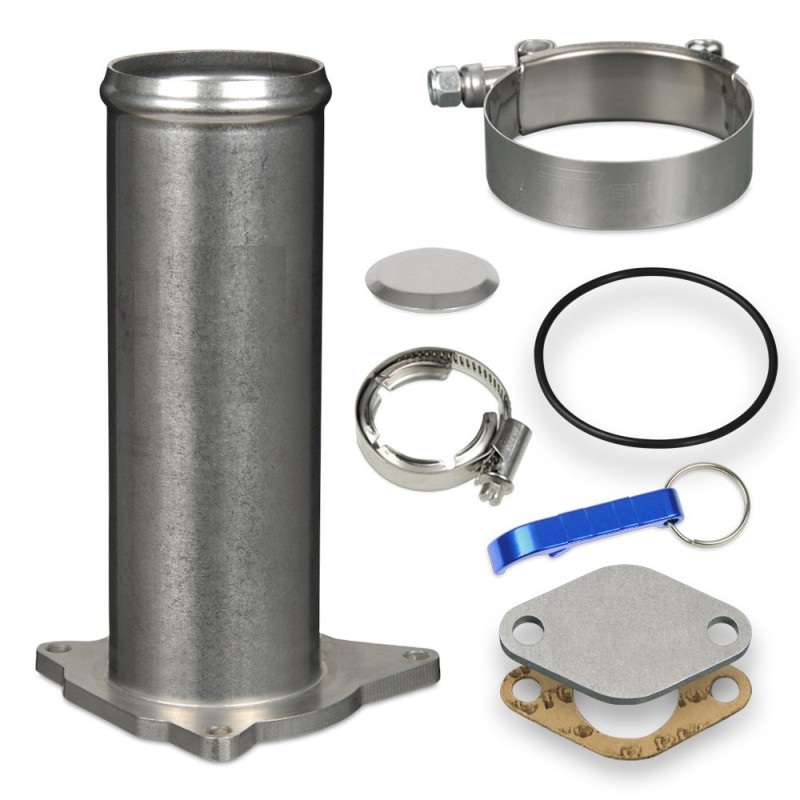

Specifications
EGR replacement pipe in stainless steel
Outer diameter 60.3 mm
Length 190 mm
Stainless steel blanking plates
Blanking plate gasket
Blanking plate clamp
O-ring seal
Hose clip
Material stainless steel
Lifetime warranty on stainless steel components
Note
On models up to approximately 2002–2004, no ECU warning light will normally appear. On later models with pneumatic or electronic EGR valves, installation may trigger a warning light on the dashboard. An ECU remap is therefore recommended to completely remove the EGR function, carried out by a professional tuner.
This product is intended for off-road and motorsport use only.
Fits
Volkswagen Touareg 2.5 R5 TDI 2003–2006 128 kW / 174 HP engines BAC, BLK
Volkswagen Touareg 2.5 R5 TDI 2003–2006 120 kW / 163 HP engines BAC, BLK
Volkswagen Transporter Mk V 2.5 R5 TDI 2003–2009 96 kW / 130 HP engine AXD
Volkswagen Transporter Mk V 2.5 R5 TDI 2003–2009 128 kW / 174 HP engine AXE
Volkswagen Multivan Mk V 2.5 R5 TDI 2003–2009 96 kW / 130 HP engine AXD
Volkswagen Multivan Mk V 2.5 R5 TDI 2003–2009 128 kW / 174 HP engine AXE
If in doubt, always check the engine code before ordering.
OEM numbers (EGR valve)
070 128 073
070128070B
070128070C
070128070E
070128070F
