Extreme radiator EXTREME Motorsport

Extreme radiator for motorsport

Here you get a large universal radiator that is perfect for various forms of motorsport, especially for drifting where you install the radiator in the rear. It has a height of 519mm, making it easy to mount vertically as it is not too tall for the trunk. The radiator has a thickness of 70mm in the core and a total width of 1014mm, providing plenty of cooling surface.

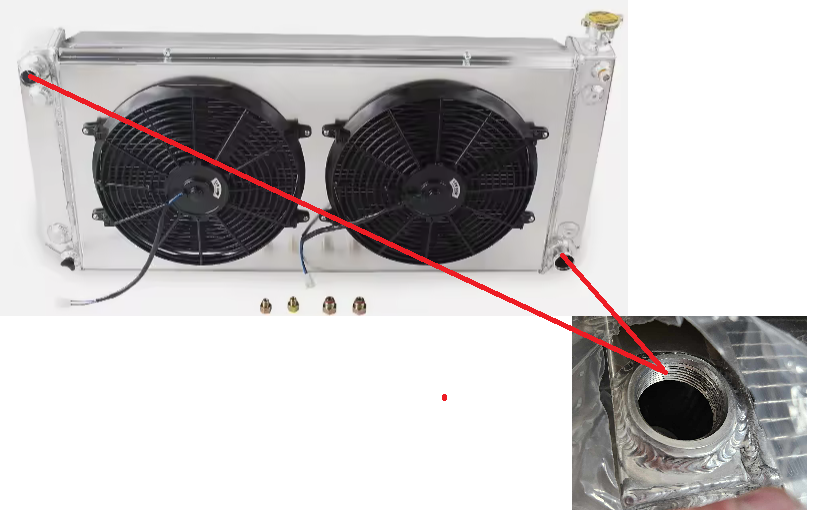

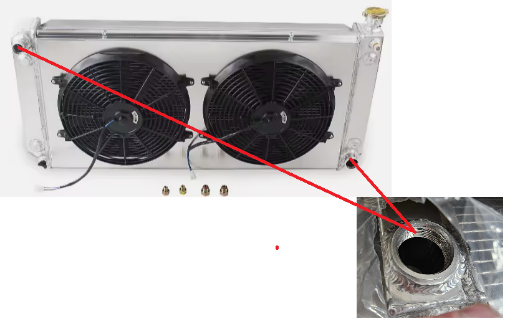

The radiator has an AN20 FEMALE (1-5/8”-12) connection, and you can find both hose connections and AN fittings under "related products," allowing you to customize the connection 100% to your needs.

You will also find an overflow tank under "related products." If you install it with this radiator, you won’t need to install an expansion tank. Read more about it under the product description.

The radiator is equipped with a fan that "pulls" air. If you want to reverse the radiator's position, you need to install a fan that "pushes" air. We recommend SPAL radiator fans as they move a LOT of air.
2835m3/H - Per fan

Inlet/outlet: AN20 FEMALE (1-5/8”-12)

Core size: 863mm*434mm*70mm
Overall size: 1014.5mm*519mm*90mm
