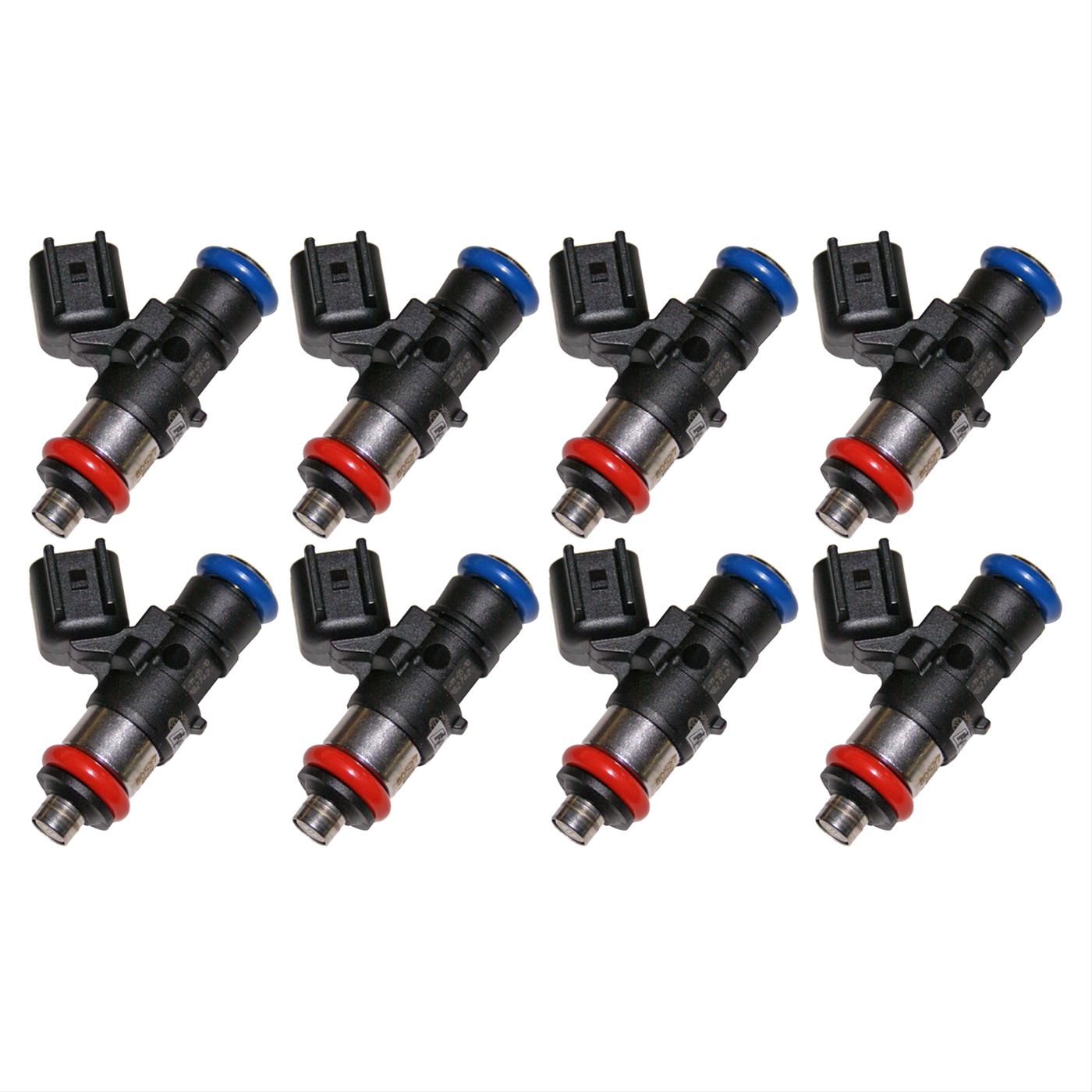

These 409.5 cc high impedance fuel injectors are designed for GM Gen IV LS engines and fit directly in LS3, L99, L76 and LS7-type applications. The injectors feature the correct short-body design for these engines and are therefore a direct alternative to the longer injector types used on LS1 and LS6 engines, among others.
The injectors have a flow capacity of 39 lbs/hr, equivalent to approximately 409.5 cc/min at 58 PSI (4 bar) fuel pressure. They are high impedance injectors designed for 12 V saturated injector drivers and feature USCAR electrical connectors, providing direct electrical connection in compatible applications.
The EV6/Pico injector design has a seat-to-seat height of approximately 37.6 mm and is designed for correct physical installation in compatible LS3, L99, L76 and LS7 applications. The kit includes 8 fuel injectors, making it a complete set for a V8 engine.
Specifications:
Injector size: 409.5 cc at 4 bar
Flow: 39 lbs/hr at 58 PSI
Impedance: High impedance
Driver type: 12 V saturated circuit
Electrical connector: USCAR
Injector type: EV6/Pico
Seat-to-seat height: Approx. 37.6 mm / 1.480"
O-ring outside diameter, manifold: Approx. 14.7 mm / 0.580"
O-ring outside diameter, fuel rail: Approx. 14.0 mm / 0.551"
Suitable for: GM LS3 / L99 / L76 / LS7-type applications
Quantity: 8 pcs.
