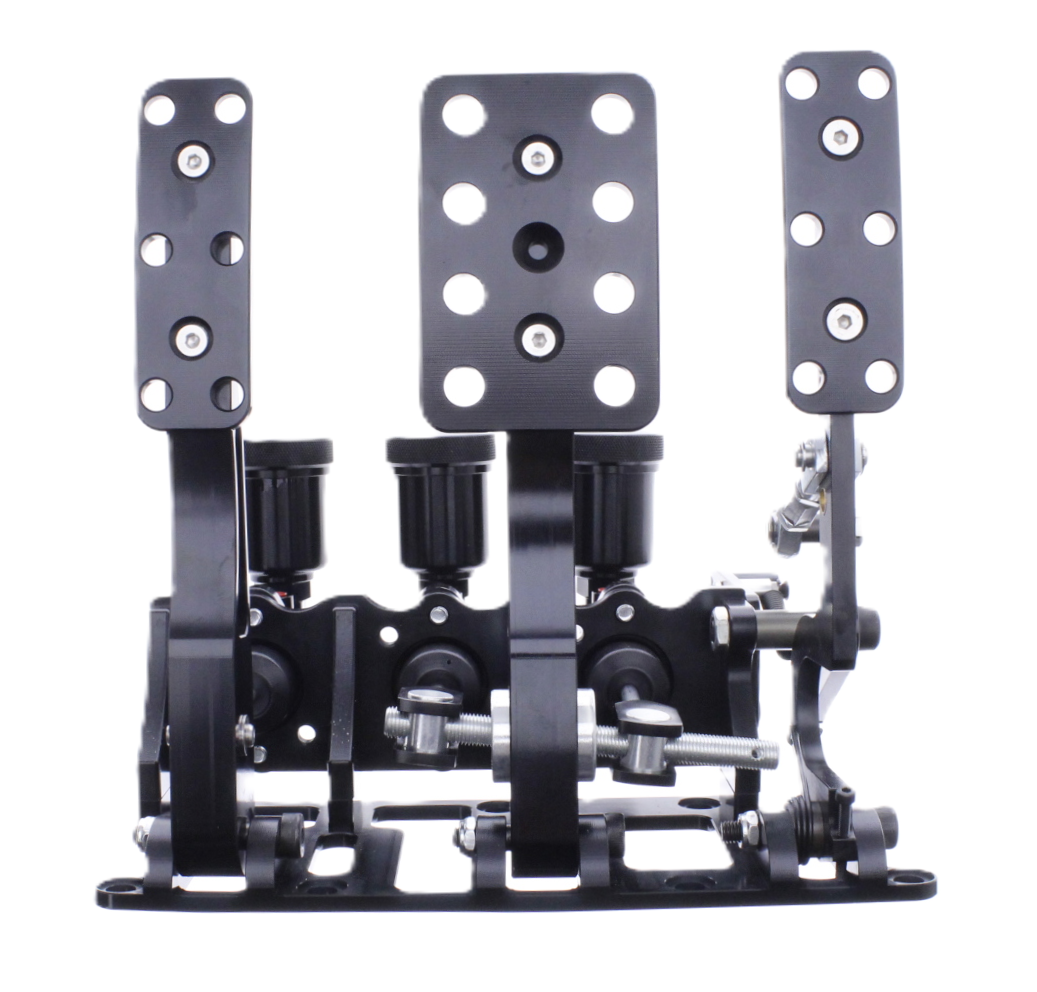

Floor-Mounted CNC Pedal Set
This floor-mounted CNC pedal set is developed for serious builders, race drivers, and enthusiasts who refuse to compromise. The design focuses on maximum control, precision, and durability for both track and road use, targeting drivers who demand absolute pedal feel under all conditions.
The pedal set is CNC-machined from aerospace-grade aluminum to achieve extreme stiffness combined with low weight. Every component is engineered with performance, safety, and ergonomics in mind, resulting in a no-compromise pedal system with exceptional feedback and control.
One of the most requested features is the steplessly adjustable pedal positions, allowing precise adaptation to driver preference and seating position. Correct pedal geometry is essential for faster lap times and safe operation, especially under high load.
Brake Pedal
The large, easy-to-operate brake pedal enables fast and safe transitions between throttle and clutch. The wide master cylinder mount allows full brake balance movement without binding. Brake feel is firm, precise, and consistent.
Clutch Pedal
The narrower clutch pedal provides improved feel at the engagement point and greater control during launches and gear changes. Increased spacing to the brake pedal enhances safety. Uniball joints ensure precise, play-free operation.
Throttle Pedal
The throttle pedal features adjustable pedal ratio, resistance, and cable connection. It is prepared for electronic throttle (DBW) sensors and includes an integrated return spring for safe operation.
Master Cylinders
Can be mounted straight or at a 45° angle. Threaded mounting points ensure easy and flexible installation.
Specifications
CNC construction
CNC-machined aerospace-grade aluminum
Pedal ratio
7.0:1 – 7.5:1 for brake and clutch
Brake pedal surface
Approx. 9500 mm² (79.5 × 120 mm)
Adjustable pedal height
15 mm (265–280 mm)
Adjustable pedal position
Stepless forward/backward adjustment
Clutch pedal
Narrow pedal for improved feel
Throttle pedal
Adjustable resistance and ratio
Sliding surfaces
Bronze bushings or uniball joints
Shafts
Strength class 12.9
Brake balance
Mounted in steel sleeve for durability
Master cylinder mounting
Threaded holes with 90° / 45° options
Cylinder mount
Wide design prevents binding
Electronic throttle
Prepared for DBW sensor (optional)
Return spring
Integrated in throttle pedal
Mounting
7 pre-drilled mounting holes
Contents
Supplied as shown in images, excluding master cylinders and bolts.
Reinforced aluminum base
Aluminum throttle pedal kit
Aluminum brake pedal kit
Brake balance set
Aluminum clutch pedal kit
Note
Floor and mounting points must be reinforced for high-load applications. Each installation is unique and requires proper support for safe operation.
Contact us if you require a different size.
