Fuel Cell 30 Litre with Integrated Surge Tank

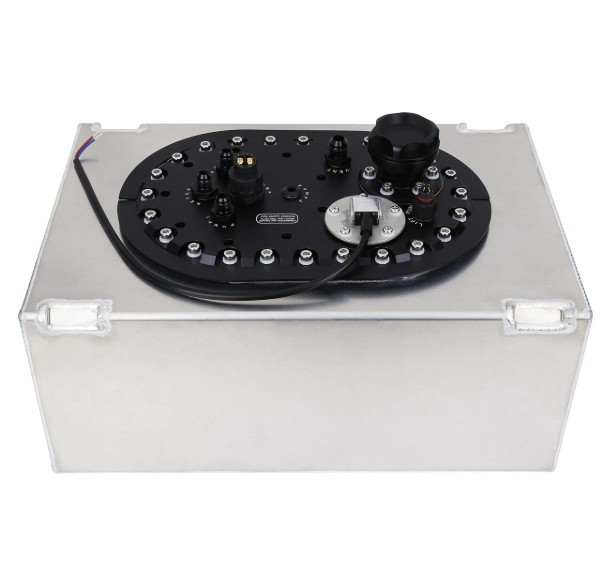

Aluminium Fuel Cell / Fuel Tank / AluCell 30 Litre with Integrated Surge Tank and Fuel Level Sender

This 30 litre aluminium fuel cell is a practical solution for projects where you want a compact and functional fuel tank with an integrated surge tank in one complete unit. It provides a simpler installation and can be an advantage in vehicles where space, weight, and reliability are important factors.

The integrated surge tank helps maintain a more stable fuel supply during hard acceleration, braking, and cornering, where standard tanks can sometimes experience issues with the pump drawing air. This makes this type of tank suitable for modified street cars, trackday cars, drift builds, circuit use, and other projects where the fuel system is exposed to higher loads than during normal driving.

The tank is made from aluminium, which provides low weight and a raw motorsport look. At the same time, it is equipped with an integrated fuel level sender, making it easier to monitor the fuel level and create a more practical setup in the vehicle.

A combined solution with an integrated surge tank can also reduce the need for additional external components in the fuel system. This can provide a cleaner installation with fewer separate parts and a tidier setup, which many choose for custom-built projects where a simple and functional installation is desired.

Specifications
Capacity: 30 litres
Material: Aluminium
Type: Fuel cell / aluminium fuel tank
Integrated surge tank: Yes
Integrated fuel level sender: Yes

Dimensions:
Length: 60.6 cm
Height (tank body only): 19.2 cm
Width: 31.6 cm

Connections:
Fuel pump outlet: AN6
Fuel line return: AN6
Tank vent: AN8

Suitable for custom builds, motorsport, and performance projects where a compact fuel tank with a more stable fuel supply under load is required.
