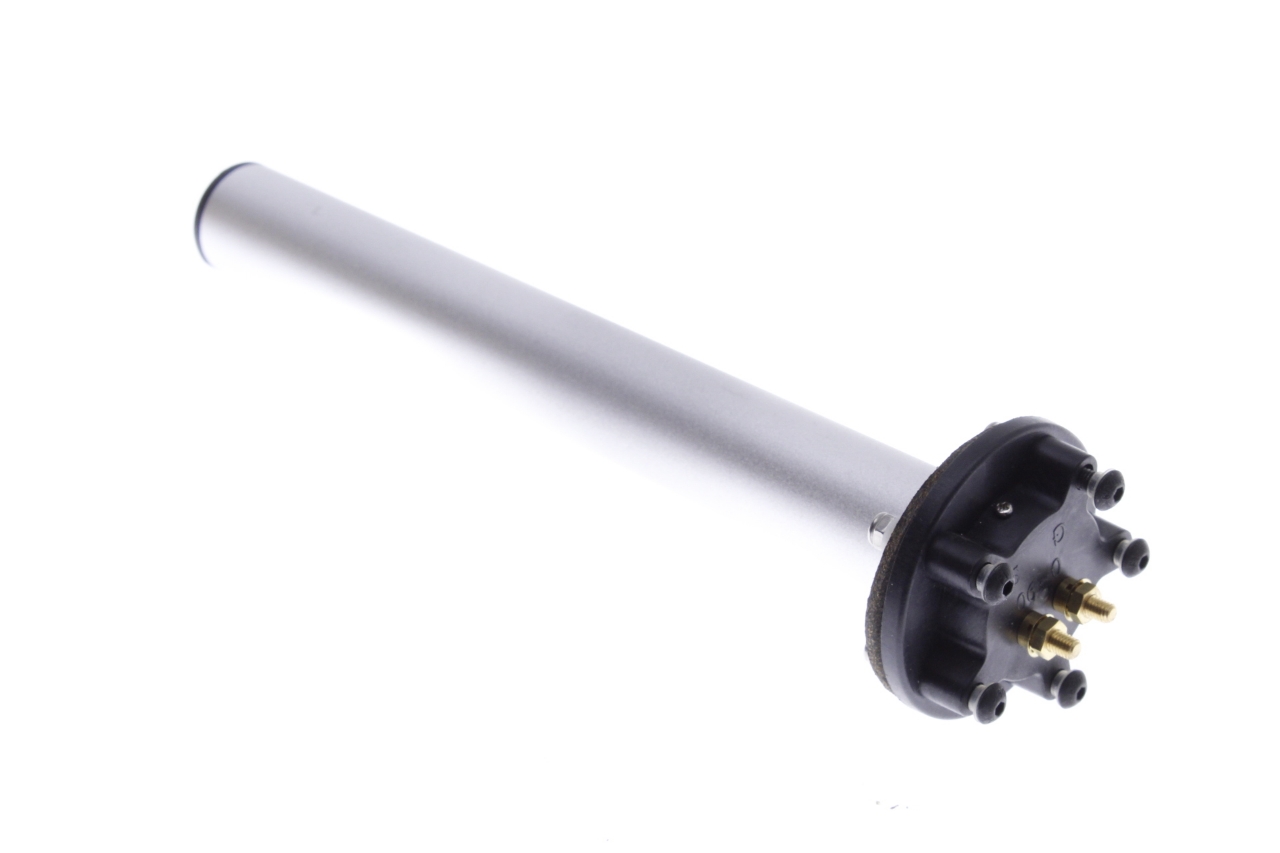

Fuel level sender 250 mm 0-90 Ohm

The fuel level sender is designed for accurate fuel level measurement in fuel tanks using a 0-90 Ohm resistance range, where the resistance is 0 Ohm when the tank is empty and 90 Ohm when the tank is full. The electric sender is mounted directly in the tank and provides stable and reliable fuel level readings during normal driving as well as under high-load conditions. It is suitable for petrol and diesel tanks in road cars, motorsport, kit cars, construction machinery, boats and other custom-built vehicles.

The compact design with a diameter of 50 mm makes the sender easy to install in many different tank solutions. It uses a traditional float design and provides a simple, reliable solution for monitoring the fuel level in a universal fuel tank or fuel cell. It is particularly suitable for projects using traditional 0-90 Ohm fuel gauges.

Specifications:
Length 250 mm
Diameter 50 mm
Resistance range 0-90 Ohm
Universal electric fuel level sender
5-bolt mounting flange
Suitable for petrol and diesel tanks
