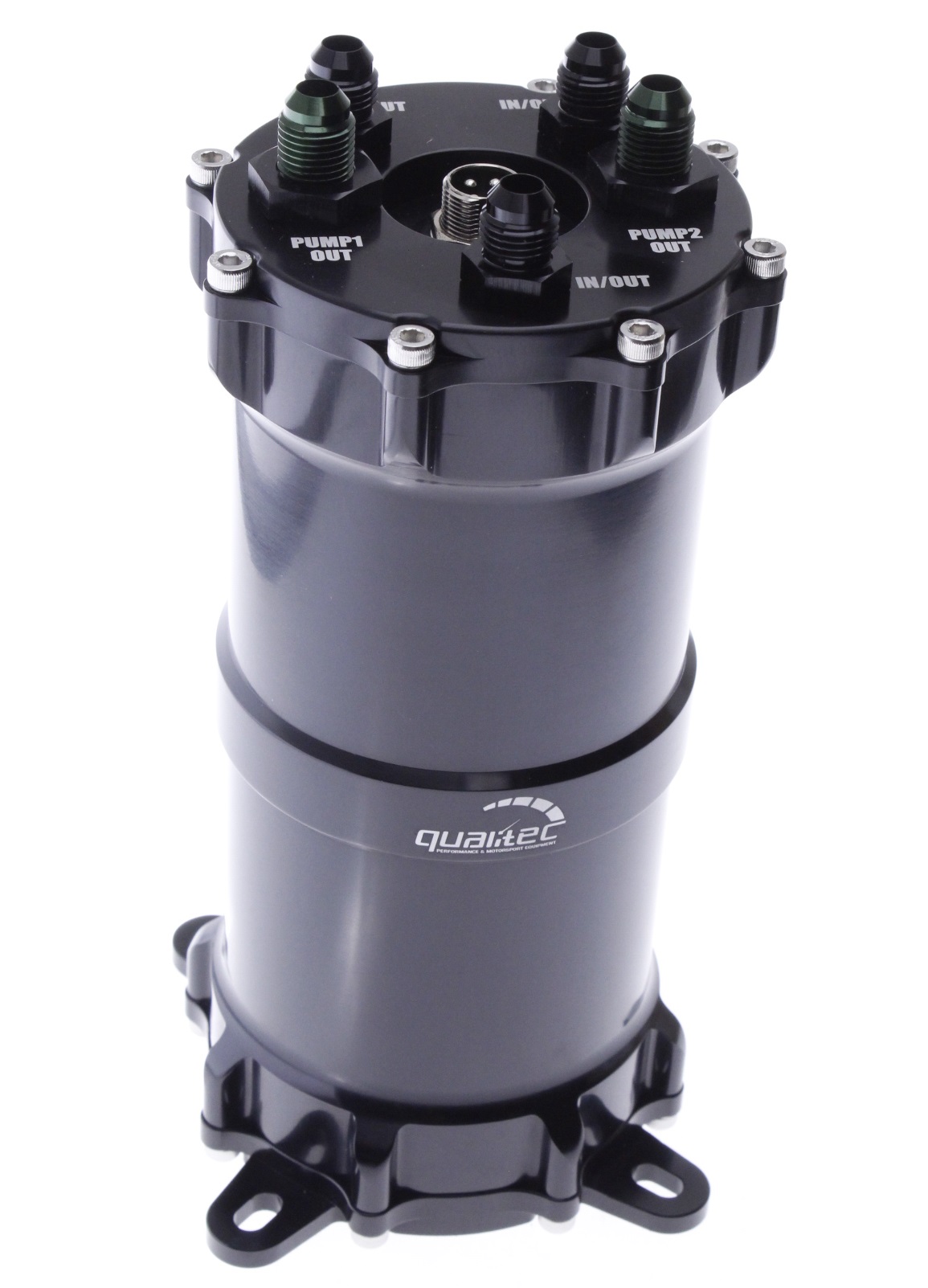

This fuel surge tank is developed for fuel systems where a compact solution with space for 2 internal fuel pumps is required. The tank can be used with Walbro GSS342, AEM fuel pumps or corresponding pumps, including more powerful E85 pumps for performance and motorsport setups.
The fuel surge tank helps ensure a more stable fuel supply under load and reduces the risk of fuel starvation during acceleration, braking and cornering load. It is suitable for tuning, motorsport and larger fuel systems where extra capacity and stable fuel supply are required.
The tank is made in high quality and is suitable for use with petrol, ethanol, methanol and alcohol-based fuels. It is supplied with AN6 nipples and has integrated wiring for 2 internal pumps with 2 x ground and 2 x 12 volt wires.
Specifications:
Type: Fuel surge tank for internal fuel pumps
Capacity: 1.2 litres
Pump position: 2 internal fuel pumps
Pump compatibility: Walbro GSS342, AEM fuel pumps and corresponding pumps
Fuel types: Petrol, ethanol, methanol and alcohol-based fuels
Connections: AN6 nipples
Wiring: 4 wires
Wire type: 2 x ground and 2 x 12 volt
Wire cross-section: 1.5 mm²
Dimensions:
Total height with nipples: 245 millimetres
Diameter: 100 millimetres
Mounting flange: 120 x 120 millimetres
