Fuel surge tank 1.5L for 044 fuel pump

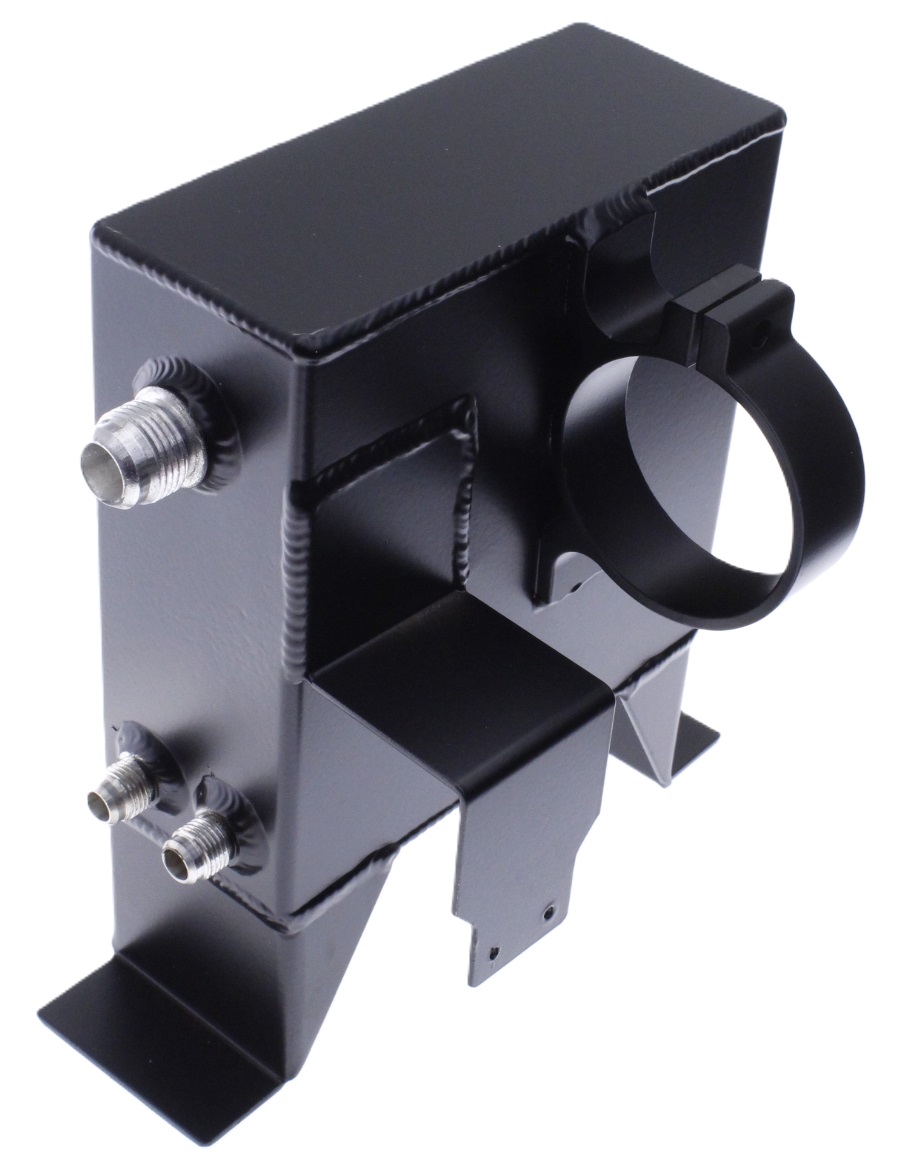

This 1.5-litre fuel surge tank is developed for fuel systems where a more stable fuel supply is required during hard driving, motorsport and custom-built projects. The tank is designed for underbody installation and is prepared for installation of 1 x 044 fuel pump and 1 x fuel filter as shown in the product image.

A fuel surge tank is used to ensure that the fuel pump has constant access to fuel, even during hard acceleration, heavy braking and high side load in corners. This reduces the risk of fuel starvation and contributes to a more stable and reliable fuel supply under high load.

The solution is suitable for track cars, performance cars and custom builds where a stable fuel system is essential. When used with PTFE fuel hoses, the system can be used with petrol, ethanol, methanol and other alcohol-based fuels, making the surge tank suitable for demanding motorsport and performance applications.

The surge tank is equipped with 3 x AN6 connections and 1 x AN10 outlet for the fuel pump.

Note:
Pump, filter, AN fittings, AN10 and AN6 connections and hoses are not included and must be purchased separately.

Specifications:
Capacity: 1.5 litres
Installation: Under the car
Pump: 1 x Bosch 044 fuel pump
Filter: 1 x fuel filter
Connections: 3 x AN6
Fuel pump outlet: 1 x AN10
Compatible fuels: Petrol, ethanol, methanol and alcohol-based fuels when used with PTFE hoses

Dimensions:
External dimensions: 232 × 223 × 70 millimetres
Top plate: 170 × 170 millimetres

Accessories for installing pump and filter as shown in the image:
1 x Bosch 044 fuel pump
1 x fuel filter
1 x M18x1.5 to AN10 male adapter
1 x M18 aluminium sealing washer
2 x AN10 to 7/8"-14 UNF nipples
1 x straight AN10 fitting
1 x 90° AN10 fitting
2 x 150° AN10 fittings
Fuel hose from tank to filter: Approximately 28 centimetres
Fuel hose from pump to filter: Approximately 7 centimetres
