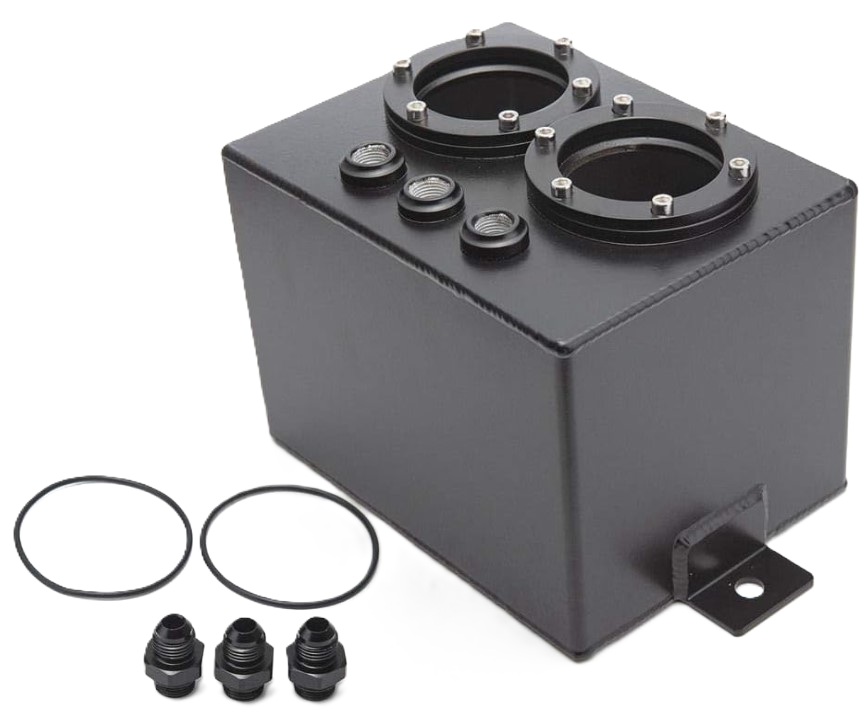

This 4 litre fuel surge tank is designed for fuel systems with space for 2 Bosch 044 or similar fuel pumps. The solution is suitable for tuning, motorsport, drift and drag racing, where stable fuel pressure is required during hard driving.
The surge tank helps ensure that the fuel pumps always have access to fuel, even when the fuel in the main tank moves during acceleration, braking and cornering loads. This reduces the risk of fuel starvation and provides a more stable supply to the engine’s fuel system.
The system can supply fuel for setups up to approximately 1000 hp, depending on pumps, fuel pressure, injectors, regulator, hose dimensions and the complete fuel setup.
The tank features 3 AN6 O-ring threaded ports, typically used for feed from the original fuel tank or fuel cell, return to the original tank and return flow from the fuel rail. Fittings are included.
Specifications:
Type: Fuel surge tank
Capacity: 4 litres
Pump compatibility: Bosch 044 fuel pump and similar pumps
Power range: Up to approximately 1000 hp depending on the complete fuel system
Thread: AN6 O-ring / 9/16"-18 SAE UNF
Connections: 3 threaded ports
Dimensions:
Tank dimensions: 200 x 151 x 151 millimetres
Distance between mounting holes: 124 millimetres
Connections:
1: Fuel from the original fuel tank or fuel cell, typically supplied by the original or an external fuel pump
2: Fuel return to the original tank
3: Return flow from the fuel rail
