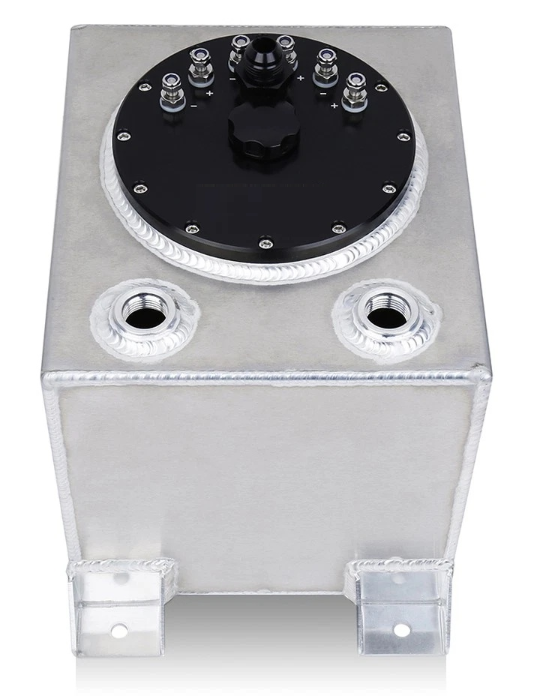

This compact 10-litre fuel tank has been developed for drag racing, motorsport and other high-performance projects where a reliable fuel supply is essential. The tank is manufactured from welded aluminium and is equipped with an integrated 0-90 Ohm fuel level sender with wiring for easy connection to a fuel gauge.
The top plate is prepared for the installation of up to three internal fuel pumps, providing excellent flexibility when designing the fuel system. Depending on the requirements of your project, the tank can be used either as a conventional fuel tank or as a separate surge tank.
The tank is particularly suitable for professional drag racing and circuit cars with high fuel demands. Its compact dimensions make it ideal for installation in the boot or other areas with limited space. Integrated mounting brackets ensure secure and stable installation in the vehicle.
The fuel tank can be used with petrol, E85 and other common motorsport fuels, depending on the installed components. The universal design makes it suitable for custom-built vehicles, kit cars, rally cars, drift cars, race cars and other motorsport projects.
Note:
The included fuel cell foam is intended for diesel only. When using petrol, E85 or other fuels, we recommend replacing it with a fuel cell foam that is compatible with the fuel being used.
Specifications:
Capacity: 10 litres
Material: Aluminium
Type: Fuel cell / surge tank
Prepared for up to 3 internal fuel pumps with separate connections
Fuel cell foam included (diesel only)
Suitable for motorsport, drag racing and custom-built projects
Dimensions:
Height: 220 mm
Width: 220 mm
Length: 250 mm
Connections:
Fuel pump outlet: AN8 (3/4"-16 UNF) female thread
Return port: AN10 (7/8"-14 UNF) female thread
Tank vent: AN10 (7/8"-14 UNF) female thread
