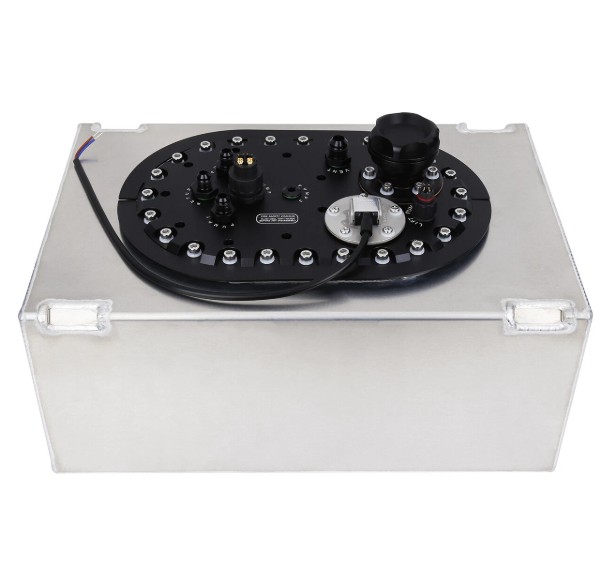

This 40-litre aluminium fuel cell is a practical solution for projects where you want a compact and functional fuel tank with an integrated surge tank in one complete unit. This simplifies installation and can be an advantage in vehicles where space, weight and reliability are important factors.
The integrated surge tank helps maintain a more stable fuel supply during hard acceleration, braking and cornering, where conventional fuel tanks may otherwise experience fuel starvation caused by the pump drawing in air. This makes the tank well suited for track day cars, drift cars, race cars and other projects where the fuel system is subjected to greater demands than during normal driving.
The tank is manufactured from aluminium, providing low weight and a motorsport-inspired appearance. It is also equipped with an integrated fuel level sender for a fuel gauge, making it easier to monitor the fuel level and providing a more practical solution in the vehicle.
An integrated surge tank can also reduce the need for additional external fuel system components. This results in a cleaner installation with fewer individual parts, making it a popular choice for custom-built projects where a simple and functional fuel system is desired.
Note:
The included fuel cell foam is intended for diesel only. When using petrol, E85 or other fuels, we recommend replacing it with a fuel cell foam that is compatible with the fuel being used.
Specifications:
Capacity: 40 litres
Material: Aluminium
Type: Fuel cell
Integrated fuel level sender with wiring for a fuel gauge
Integrated surge tank for stable fuel supply
Fuel cell foam included (diesel only)
Suitable for motorsport, drag racing and custom-built projects
Dimensions:
Height: 252 mm
Width: 316 mm
Length: 602 mm
Connections:
Fuel pump outlet: AN6 (9/16"-18 UNF) female thread
Return: AN6 (9/16"-18 UNF) female thread
Tank vent: AN8 (3/4"-16 UNF) female thread
