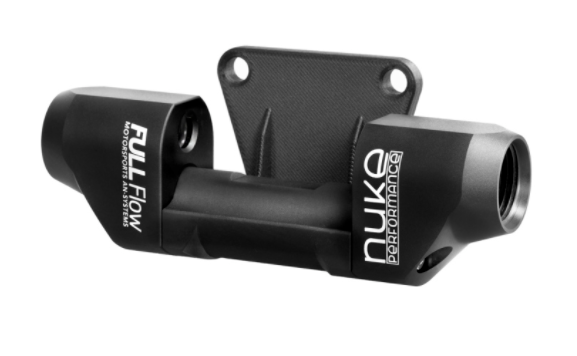

Nuke Performance full flow flex fuel sensor adapter for installing ethanol and flex fuel sensors in high-performance fuel systems. The adapter is designed with a bypass/split-flow design, making it possible to install a flex fuel sensor without significant flow loss – even in large AN10 fuel systems.
Many standard ethanol sensors have limited internal flow capacity, which can create restrictions in performance and motorsport setups. This adapter uses an oversized internal bypass channel, which exceeds the flow capacity of an AN10 fuel line and makes it possible to use a flex fuel sensor on both the pressure and return side of the fuel system.
The full flow adapter is made from lightweight aluminium and is supplied with an integrated mounting bracket and Viton O-rings, which are resistant to petrol, E85, ethanol and methanol. AN10 ORB threads at both ends allow very high flow and flexible adaptation with different ORB fittings.
Note: Flex fuel sensor is not included and must be purchased separately.
Specifications:
Inlet thread: AN10 ORB
Outlet thread: AN10 ORB
Sensor connection: SAE 9.49 millimeter / 5/16"
Fuel compatibility: Petrol, E85, ethanol and methanol
Mounting bracket: Integrated and removable
O-rings: Viton
Material: Aluminium
Width: 137 millimeter
Weight: 240 grams
