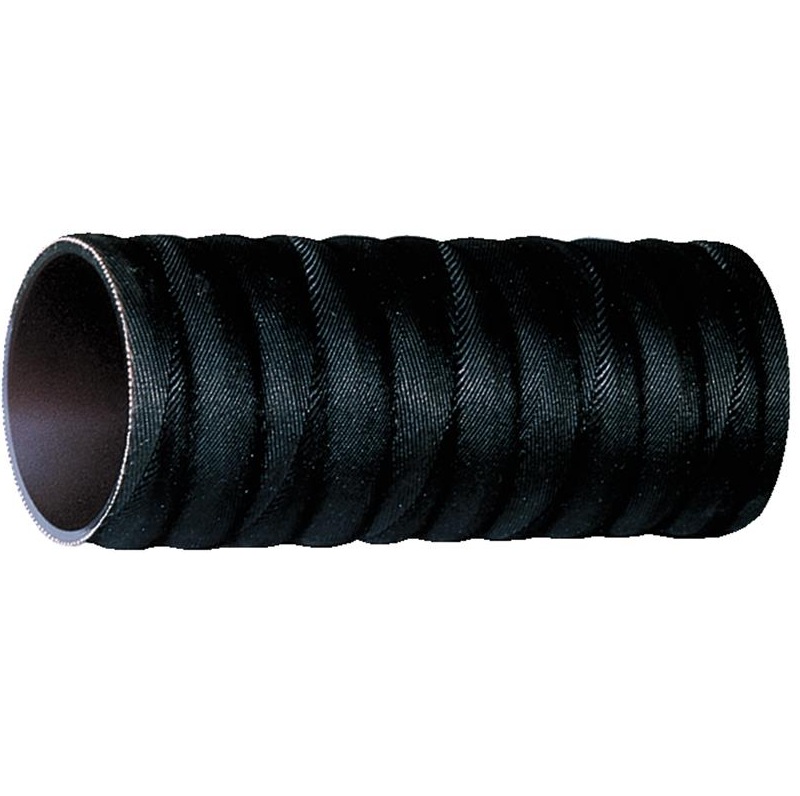

Gates fuel filler hose is a heavy-duty rubber hose with 51 millimetre inner diameter and 90 centimetre length. The hose is suitable for use as a fuel filler hose, tank vent hose, oil installations and hydraulic suction side, depending on the specific installation.
Gates is a recognised manufacturer of hoses and belt systems for automotive, industry and motorsport. Gates hoses are widely used in both OEM and performance applications due to their high quality and durability.
The hose is constructed with nitrile rubber on the inside, synthetic textile reinforcement and modified nitrile rubber on the outside. This provides a robust hose with good resistance to fuel, oil and load in automotive and motorsport-related installations.
Gates fuel and oil hose is designed for fuel and oil applications where a flexible and strong hose with a large inner diameter is required. Always check compatibility with the specific fuel, oil product and installation environment before use.
Specifications:
Type: Fuel filler hose / fuel fill hose
Inner diameter: 51 millimetres / 2"
Length: 91 centimetres / 3 ft
Inner material: Nitrile rubber
Reinforcement: Synthetic textile reinforcement
Outer material: Modified nitrile rubber
Temperature range: -40°C to +100°C
Max. working pressure: 1.4 bar
Standard: SAE 30R6 and SAE 30R7, except oxidized petrol test
Application: Fuel filling, engine oil, hydraulic suction side, tank venting and crankcase ventilation
