Picture of Holset HX30W - Original Picture of Holset HX30W - Original

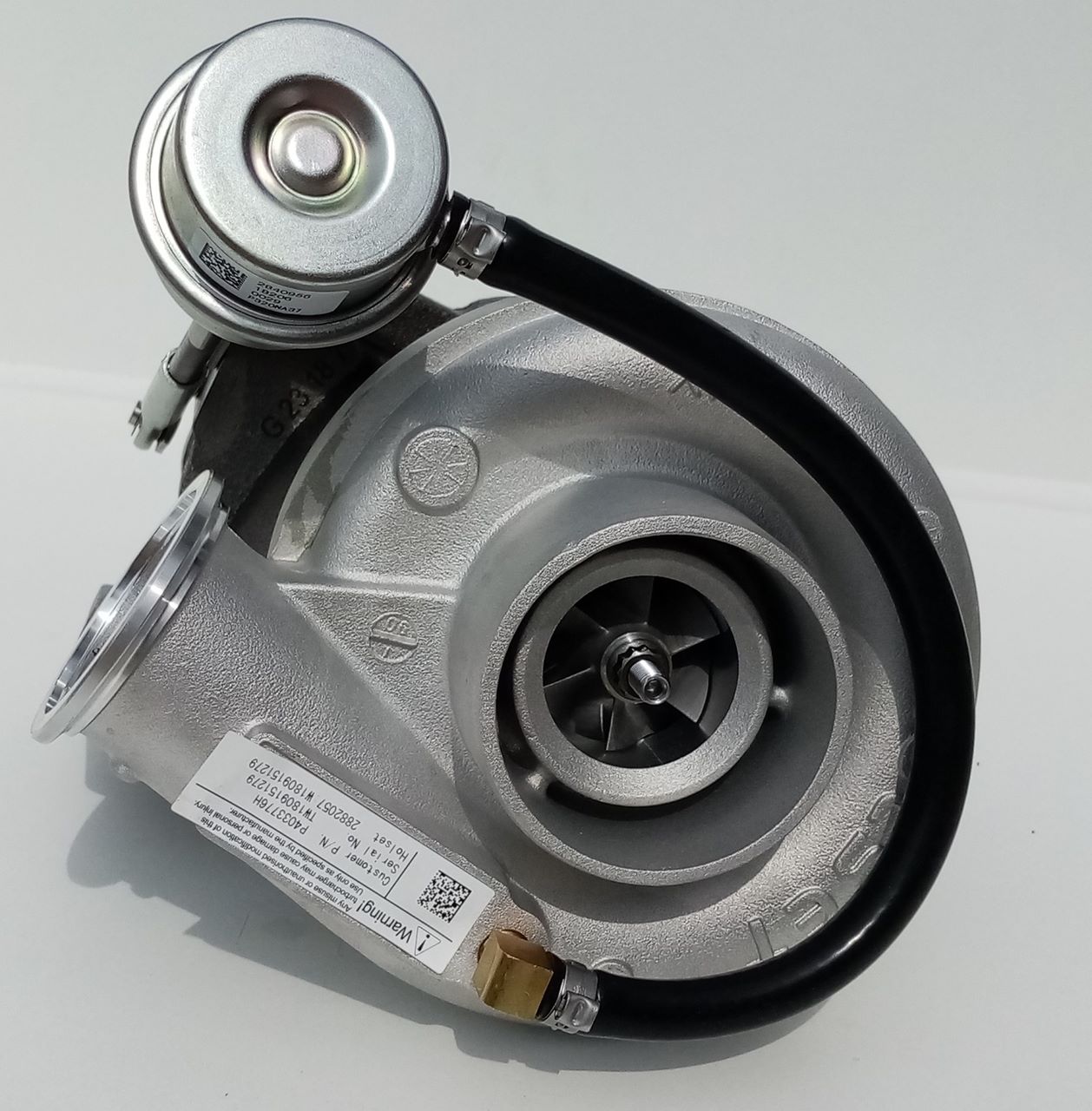

Holset HX30W - Original

Manufacturer: Holset
Holset HX30W turbo from 2 - 5.5 liter engine.
SKU: 1.00311.04-4033776H
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
5+
Price
€448.23
€401.40

Availability 4 in stock

Old price: €602.10
€465.09
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Holset HX30 turbo - Original

This turbo fits on a motor that is from 2 - 5.5 liters. This is a very powerful turbocharger that lasts a lot. Often used for diesel tuning on eg Nissan Patrol or similar.

Holset HX 30 turbo info:

Compressor wheel 68 / 40mm.

Exhaust wheels 52 / 65mm.

Exhaust housing 6cm 2

Oil cooled / 360 ° bearing

Turbine inlet: T3

Turbine outlet: 2.5 "V-band / 63mm.

Compressor inlet: 3 "/ 76mm.

Compressor outlet: 2 "V band can be used

Oil access: M12x1.5

Oil output: Bolt flange - 51mm. between bolt holes

Packages included.

*
*
*
