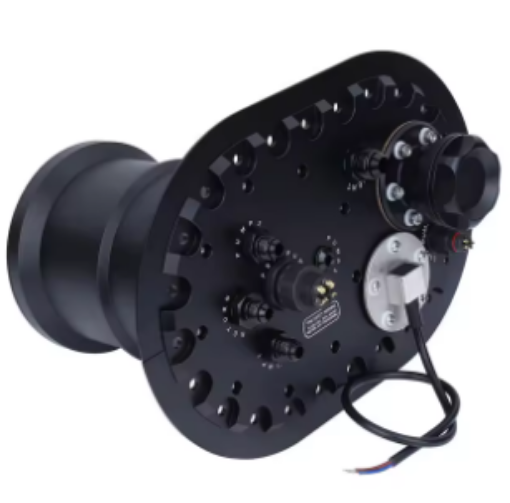

In-tank surge tank
This surge tank is designed for installation in approved fuel tanks with a standardised 24-bolt bolt pattern and fits tanks such as ATL and Fuel Safe. It is a relevant solution for motorsport, performance cars, and custom builds where a more stable fuel supply is needed during hard acceleration, cornering, and other demanding driving conditions.
The design focuses on low weight, high quality, and a solid construction. The surge tank is CNC-machined from aluminium alloy and supplied with stainless steel bolts for long-lasting durability and a clean finish. It is built for dual fuel pump installation, making it suitable for high-capacity fuel systems in more demanding setups.
The surge tank can be used with several popular fuel pumps, including Walbro 342, GST 450, GST 525, DeatschWerks DW400, and AEM 320 lph E85. Fuel pumps are not included.
Specifications
Capacity: 2.2 litres
Material: CNC-machined aluminium
Bolts: Stainless steel
Top plate: Billet aluminium 6 x 10"
Bolt pattern: Standard 24-bolt
Pump outlets: 2 x AN6
Return inlet: 1 x AN8
Vent: 1 x AN6
Installation: Dual fuel pump mounting possible
Included: Fittings and washers for installation
Note: Fuel pumps are not included
