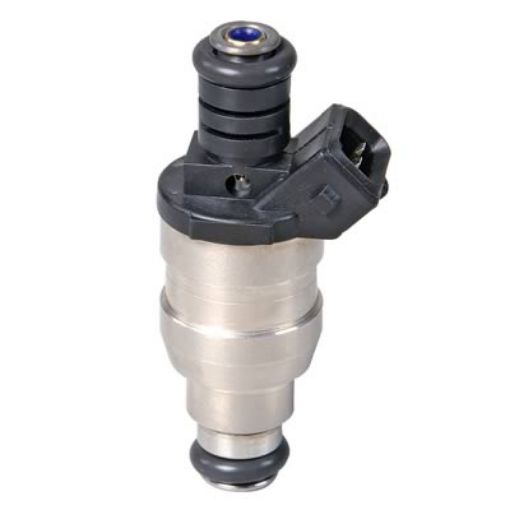

This 1260 cc low impedance fuel injector is suitable for EFI fuel systems with high fuel demands and heavily modified engines. The injector has a flow capacity of 120 lbs/hr and is designed for high-power applications where a large and stable fuel supply is required.
With an impedance of 2.2 ohms, the injector is designed for 4/1A peak and hold injector drivers. It is therefore important to ensure that the engine management system or injector driver being used is compatible with low impedance injectors before installation.
The injector features a Jetronic/Minitimer electrical connector and is supplied with O-rings. The high flow capacity makes it suitable for performance and motorsport applications where the physical dimensions, fuel system and electrical control are compatible.
Specifications:
Injector size: 1260 cc
Flow: 120 lbs/hr
Fuel type: Gasoline and E85
Impedance: 2.2 ohms
Driver type: 4/1A peak and hold
Overall height: Approx. 73.2 mm / 2.880"
Seat-to-seat height: Approx. 62.2 mm / 2.450"
O-ring outside diameter, manifold: Approx. 14.0 mm / 0.550"
O-ring outside diameter, fuel rail: Approx. 11.4 mm / 0.450"
Maximum outside diameter: Approx. 24.0 mm / 0.943"
Electrical connector: Jetronic/Minitimer
O-rings included: Yes
Wiring harness included: No
Power capacity at 90% duty cycle:
Gasoline:
1 cylinder: Up to approx. 168 hp
4 cylinders: Up to approx. 672 hp
5 cylinders: Up to approx. 840 hp
6 cylinders: Up to approx. 1,008 hp
8 cylinders: Up to approx. 1,344 hp
E85:
1 cylinder: Up to approx. 146 hp
4 cylinders: Up to approx. 584 hp
5 cylinders: Up to approx. 730 hp
6 cylinders: Up to approx. 876 hp
8 cylinders: Up to approx. 1,168 hp
